1.9 Block diagram
1.9.1 Models with CAN bus, 1-Wire and/or Latch Relay

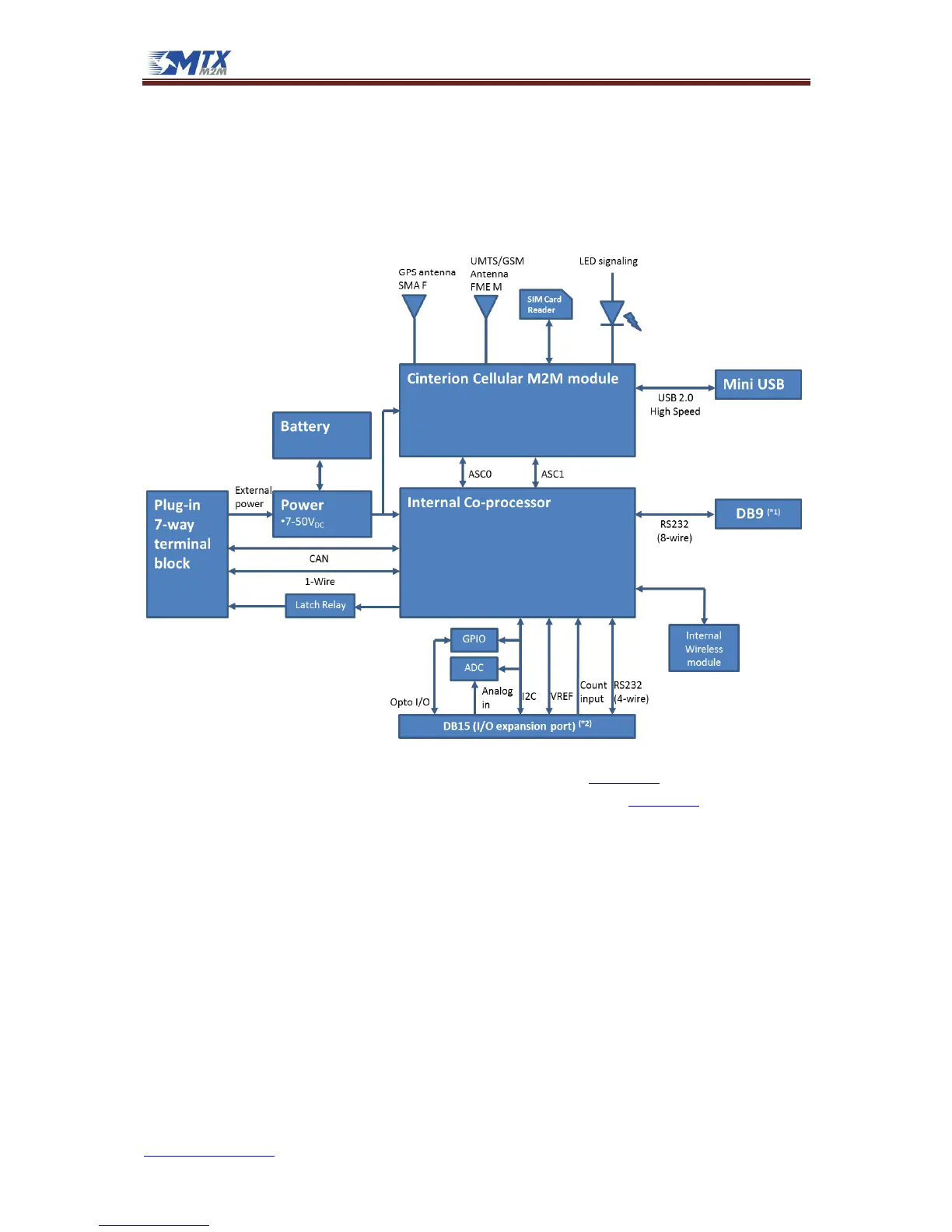

The MTX-IoT modems containing CAN bus, 1-Wire and/or Latch Relay have the following block
diagram:
Note *1: DB9 connector only available in STD and DB9 variants. See section 1.2
Note *2: DB15 HD connector only available in STD and DB15 variants. See section 1.2
