MTX-xG-JAVA-IoT Family

www.mtxm2m.com 2017/07 v1.2 Page 31/105

MTX M2M® by MATRIX ELECTRONICA S.L.U

1.9.4 All other models

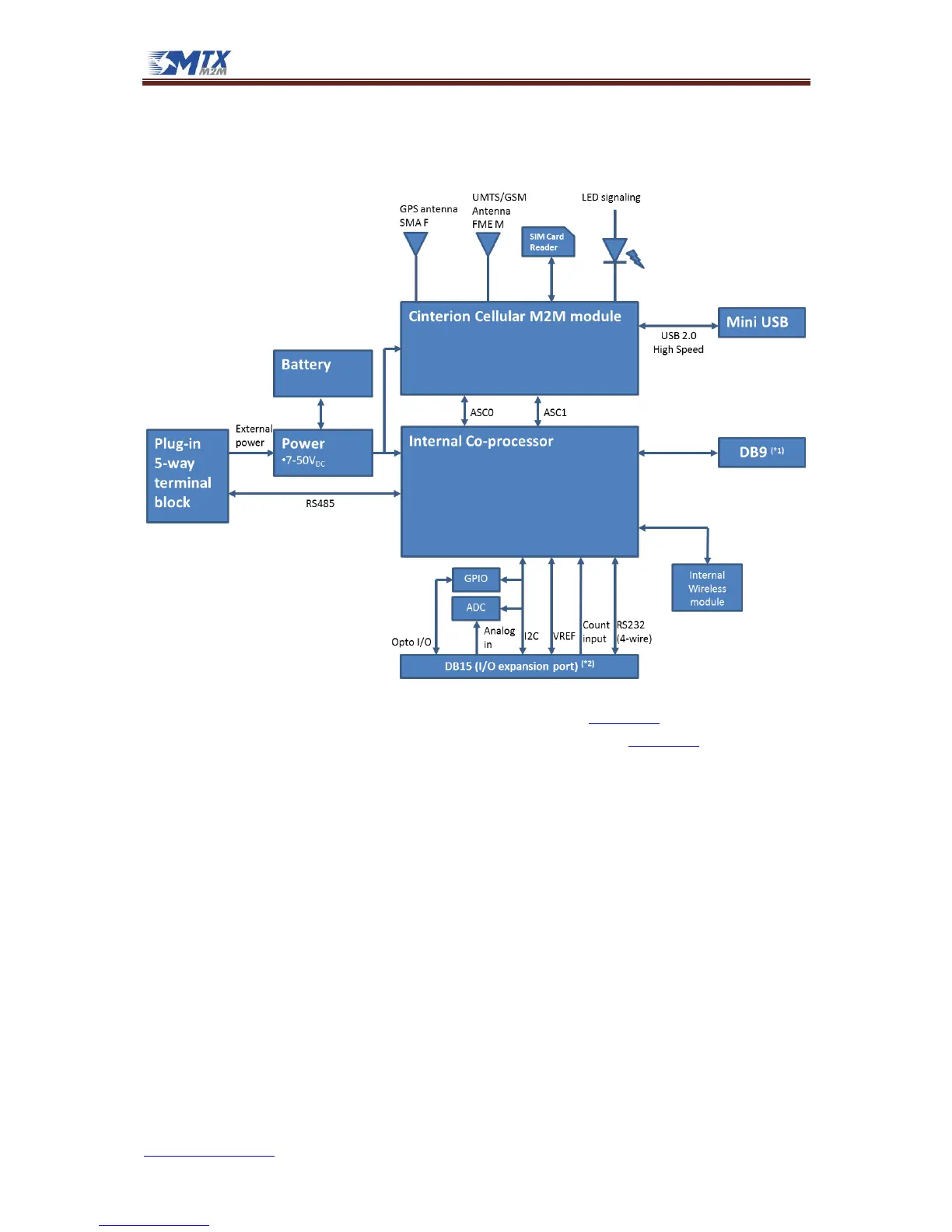

The general MTX-IoT modem’s block diagram is shown in the following figure:

Note *1: DB9 connector only available in STD and DB9 variants. See section 1.2

Note *2: DB15 HD connector only available in STD and DB15 variants. See section 1.2
