4.1.2 Models with Power Relay 220V/6A (5-way plug-in 5.00mm pitch terminal
block)

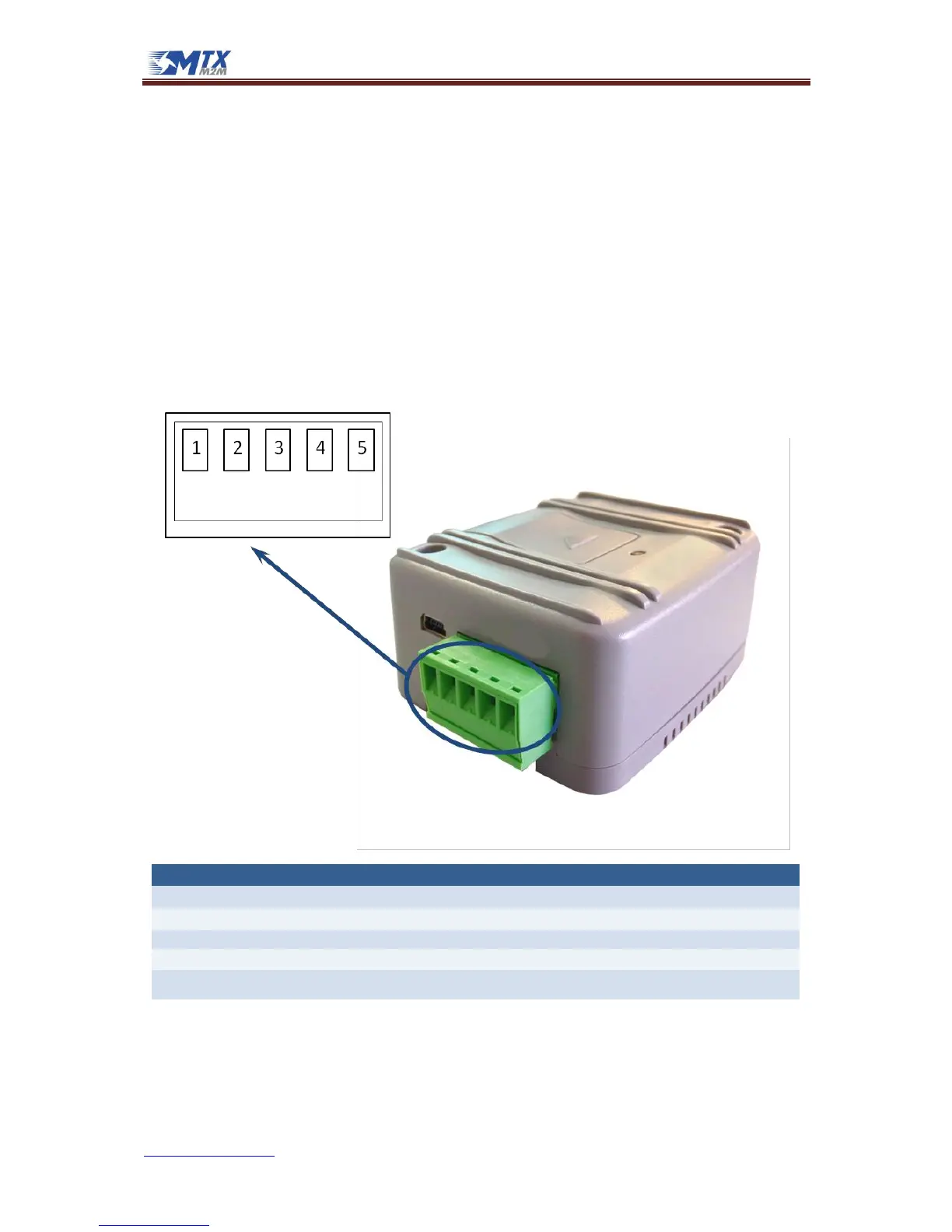

A 5-way plug-in terminal block connector shared with a 220VAC/6A relay, as shown and described
below, supplies the D.C. power to the modem.
The supply voltage, VCC, required by the modem is in the range of 7 to 50VDC. We recommend a
12VDC power supply. The power supply has to be a single voltage source capable of providing a peak
during an active transmission. The uplink burst causes strong ripples (drop) on the power lines.
By default, the MTX-IoT will automatically switch on when power supply is applied between PIN 2 and
PIN 1.
Pin
Signal
Direction
Limits
Description
1
GND
Input
Negative power (ground)
2
VIN
Input
7-50VDC
Positive power input
3
RL_NC
220VAC/6A relay Normally Close contact
4
RL_COM
220VAC/6A relay Common contact
5
RL_NO
220VAC/6A relay Normally Open contact
