1.9.2 Models with Power Relay 220VAC/6A

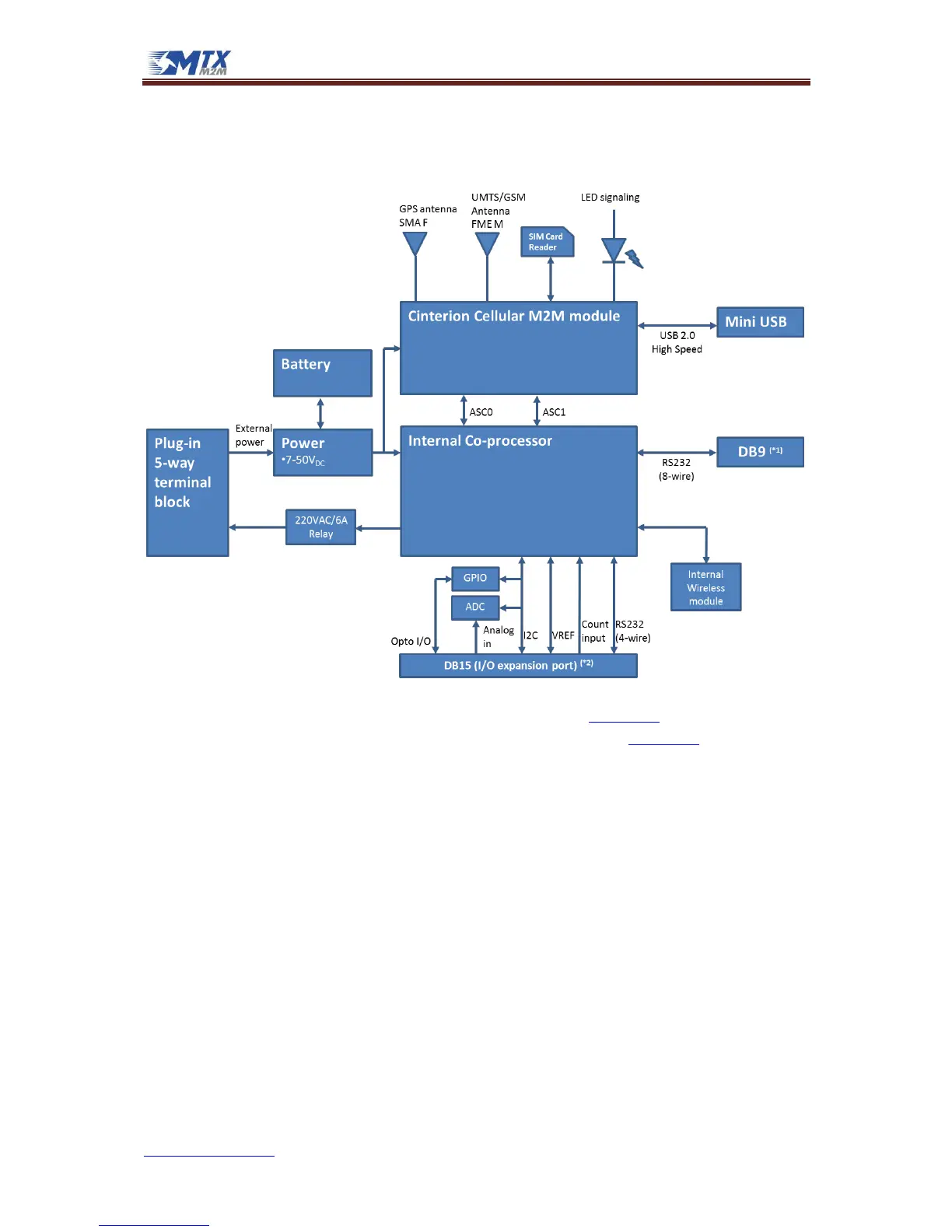

The MTX-IoT modems containing a 220VAC/6A Power relay have the following block diagram:
Note *1: DB9 connector only available in STD and DB9 variants. See section 1.2
Note *2: DB15 HD connector only available in STD and DB15 variants. See section 1.2
