MTX-xG-JAVA-IoT Family
www.mtxm2m.com 2017/07 v1.2 Page 30/105
MTX M2M® by MATRIX ELECTRONICA S.L.U
1.9.3 Models with RJ11 connector and/or analog audio

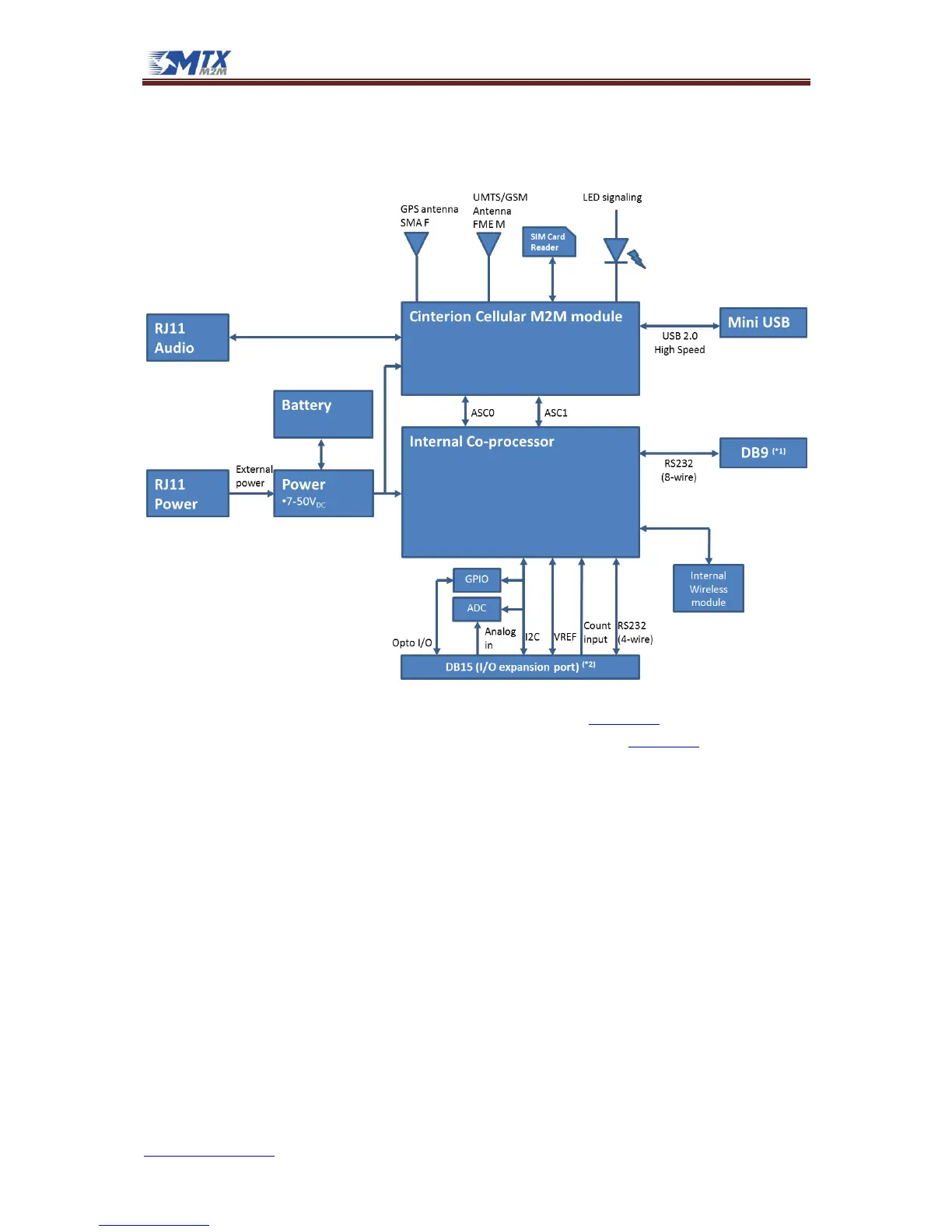

The MTX-IoT modems with RJ11 connectors and/or analog audio have the following block diagram:
Note *1: DB9 connector only available in STD and DB9 variants. See section 1.2
Note *2: DB15 HD connector only available in STD and DB15 variants. See section 1.2
