Power Relay

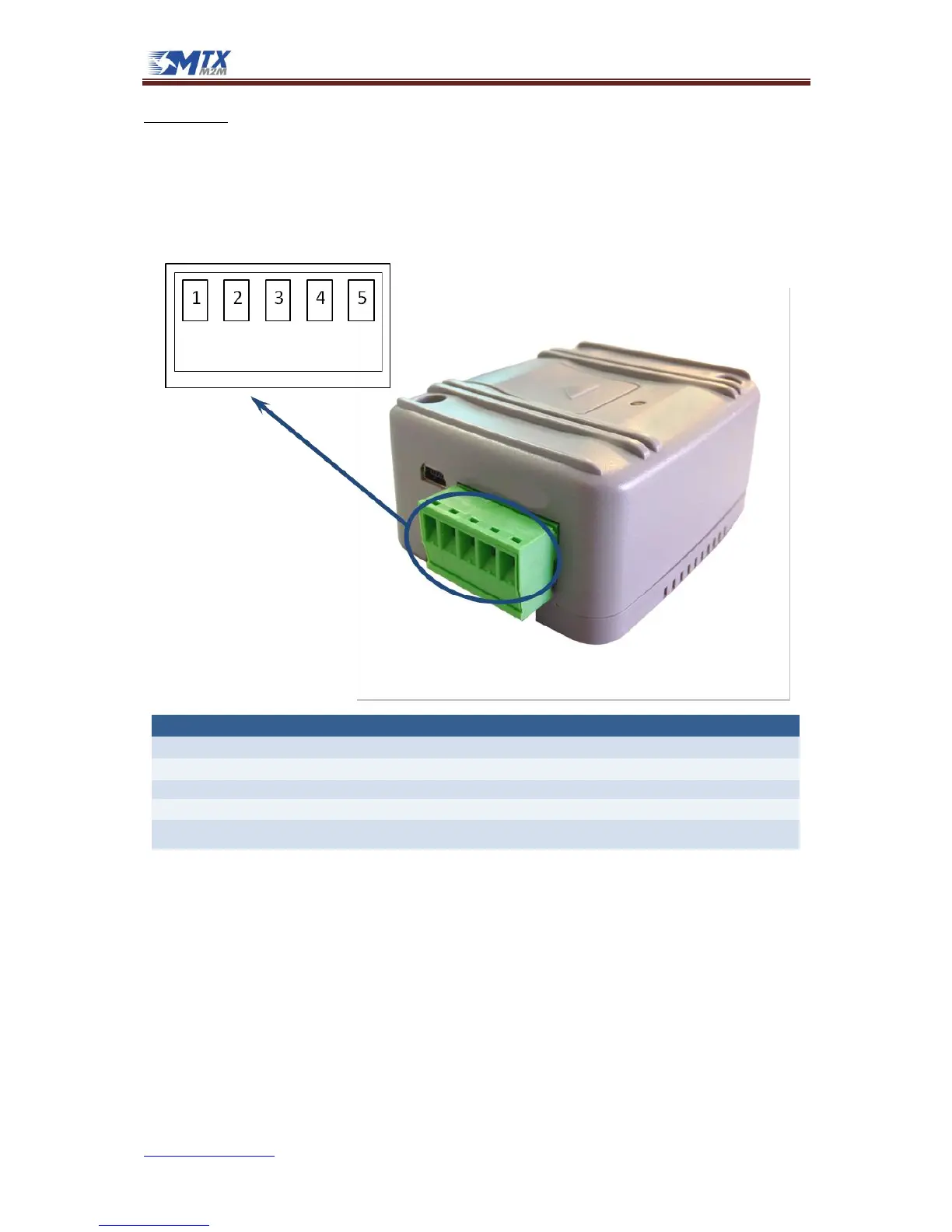

Devices including a Power Relay have a 5-way plug-in 5.0mm pitch terminal block where the relay
contacts (Common, Normally Close and Normally Open) are available, shared with the Power Supply.
The Power Relay contacts can handle 220VAC/6A.
To learn how to use commute the relay contacts please read the MTX-IoT Family Software Manual
Pin
Signal
Direction
Limits
Description
1
GND
Input
Negative power (ground)
2
VIN
Input
7-50VDC
Positive power input
3
RL_NC
220VAC/6A relay Normally Close contact
4
RL_COM
220VAC/6A relay Common contact
5
RL_NO
220VAC/6A relay Normally Open contact
