Description
22 13.05.2014
2 Description
2.1 Construction of the machine

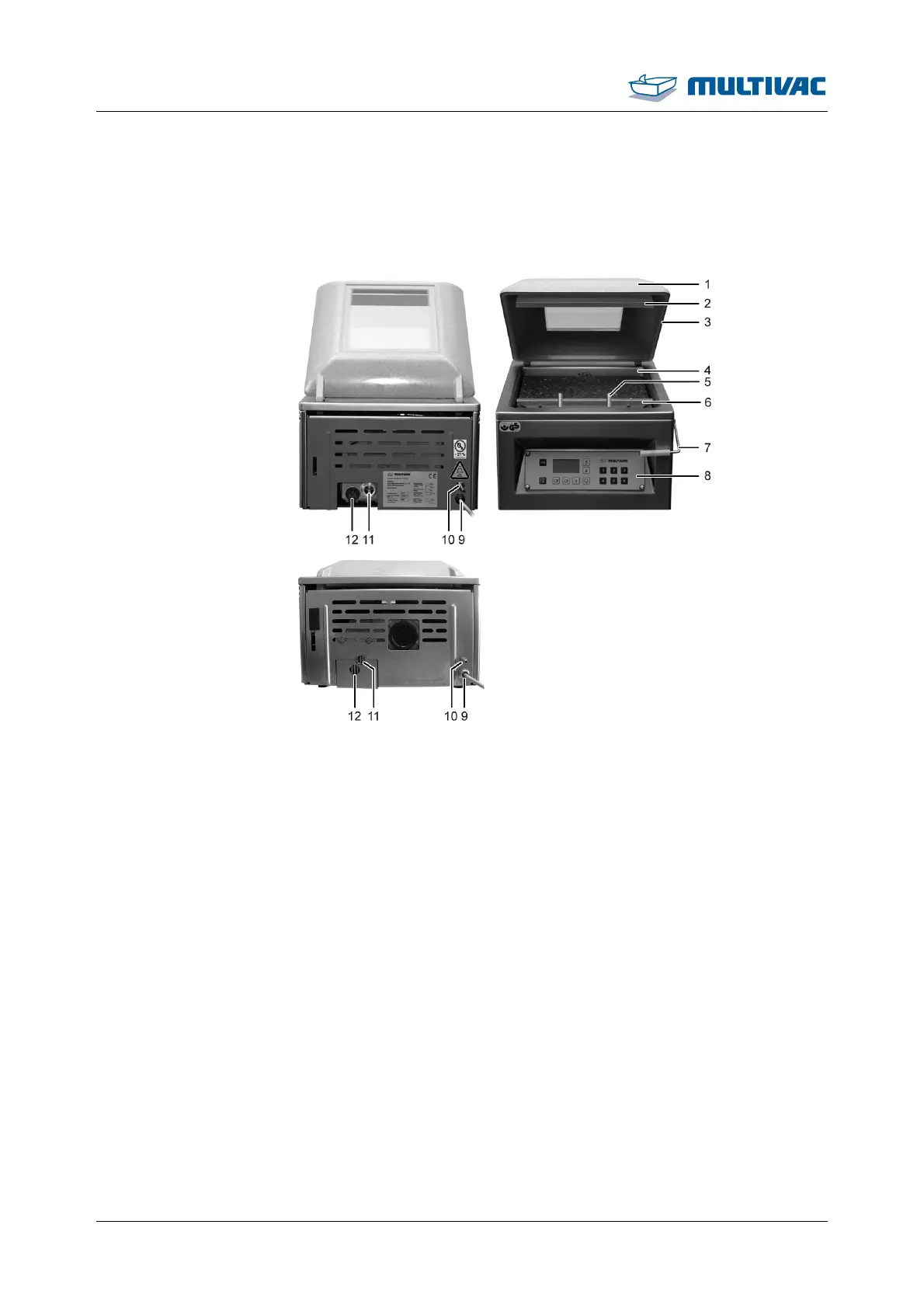

Fig. 7: Construction of the machine
1
Chamber lid
2
Counter-pressure bar
3
Chamber lid gasket
4
Chamber with spacer plates and sloping insert with support angle
5
Inert gas nozzle (option)
6
Sealing bar
7
Locking device for chamber lid
8
Control terminal
9
Power supply
10
(Optional) Inert gas connection
11
Oil sight glass
12
Screw plug of the drain opening
