Menu tree
28 13.05.2014
2.4 Menu tree
Recipe
Load recipe
(Exit) Recipe 1 Recipe 2 Recipe 3 Recipe n Recipe 30 Factory settings
Save recipe
(Exit) Recipe 1 Recipe 2 Recipe 3 Recipe n Recipe 30 Factory settings
Delete recipe
(Exit) Recipe 1 Recipe 2 Recipe 3 Recipe n Recipe 30 Factory settings
(Exit)
(Exit)
Language Authorisation PIN Brightness
(Exit) Counter Operating hours Cycle period Settings
(Exit) Settings
User Production data
Service
Menue
Evacuate Gas flushing (not active)
(Exit) Sealing (On/Off) Ventilation delay Cool off
Sealing
(Exit) - Fill diaphragm Ventilate diaphragm
Basic Settings
(Exit)
Machine cycles Total cycles Operating hours Vacuum pump Change PIN Reset PIN
Legend:
User
Configurator
(Password: 1234)
(Exit) Distribution time Automatic Procedure (standard/MCV) MCV threshold MCV period

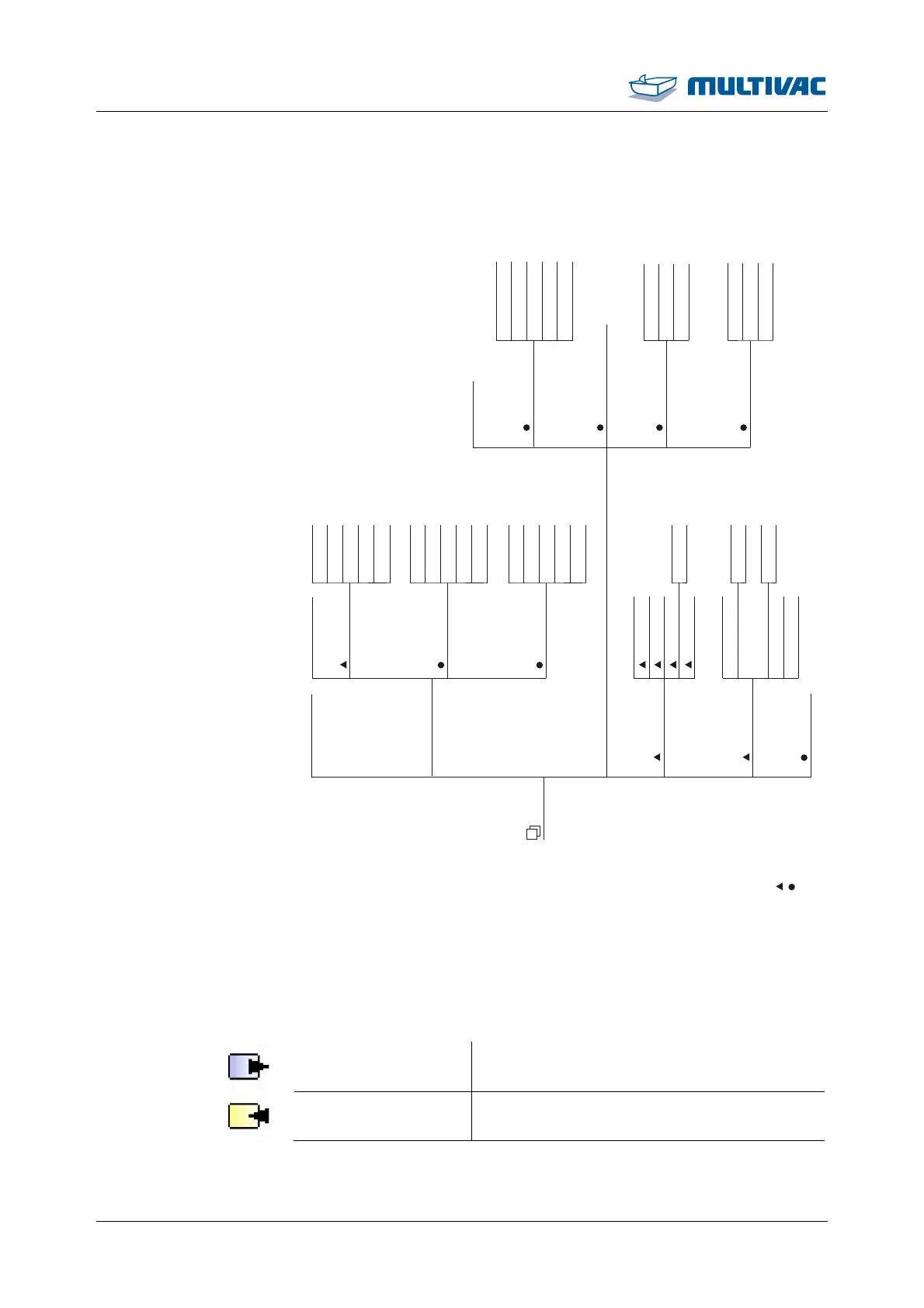

Fig. 17: Menu tree
2.5 Process sequence
The film pouches are filled and laid in the chamber. When the cham-
ber is closed, the following procedures run automatically:
Evacuation Evacuation if chamber and film pouches.
Gas flushing (optional) Infeed of inert gas.
