© Munters AB, 2020 118
12.1.4 M
OUNTING THE
P
ANELS

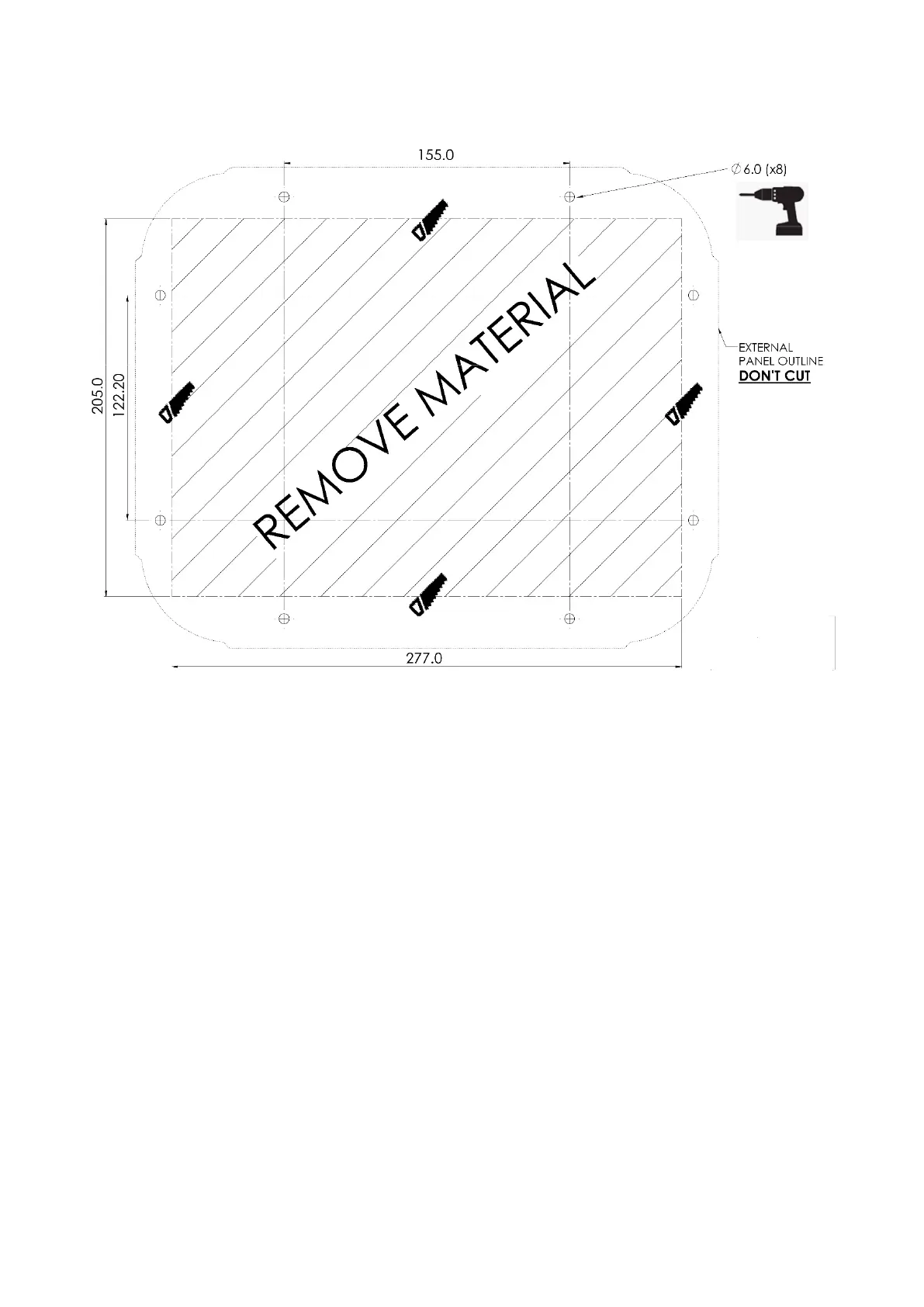

Figure 43: Panel Cutting and Drilling Dimensions (millimeters)
•
Drill eight holes as indicated above.
•
Using the dimensions shown, cut out a space into which the CPU Front Door is
placed.
