36. Remote Left Key - Functions the same as the front panel key, except using a digital input.
37. Remote Right Key - Functions the same as the front panel key, except using a digital
input.
38. Run To Destruct - When enabled (There is a hardware trace that must be cut to enable
this!) this causes the controller to ignore all shutdowns and continue to operate no matter what.
This is also sometimes called a “Battle Short” input.
39. Modbus Mode change OK - When using the Modbus server (slave) port, this allows a
remote user to change from AUTO to MANUAL and vice versa if it is active.
40. Disable Keyboard - When this input is active the front keyboard is totally locked out.
Generator Steering
In applications where there is a voltage reconnection switch for reconfiguring the alternator
from 480V 3 phase 4 wire to 240V 3phase 4 wire or 240V single phase 3 wire, the steering
inputs allow a means to track which configuration is currently selected. This is done by means
of selecting (grounding) the appropriate input via an auxiliary contact on the reconnection
switch. There are up to 6 selections available from the iGUARD controller. Each is fully
independent (except for the CT selection) from the others. Some 480/240V reconnectable

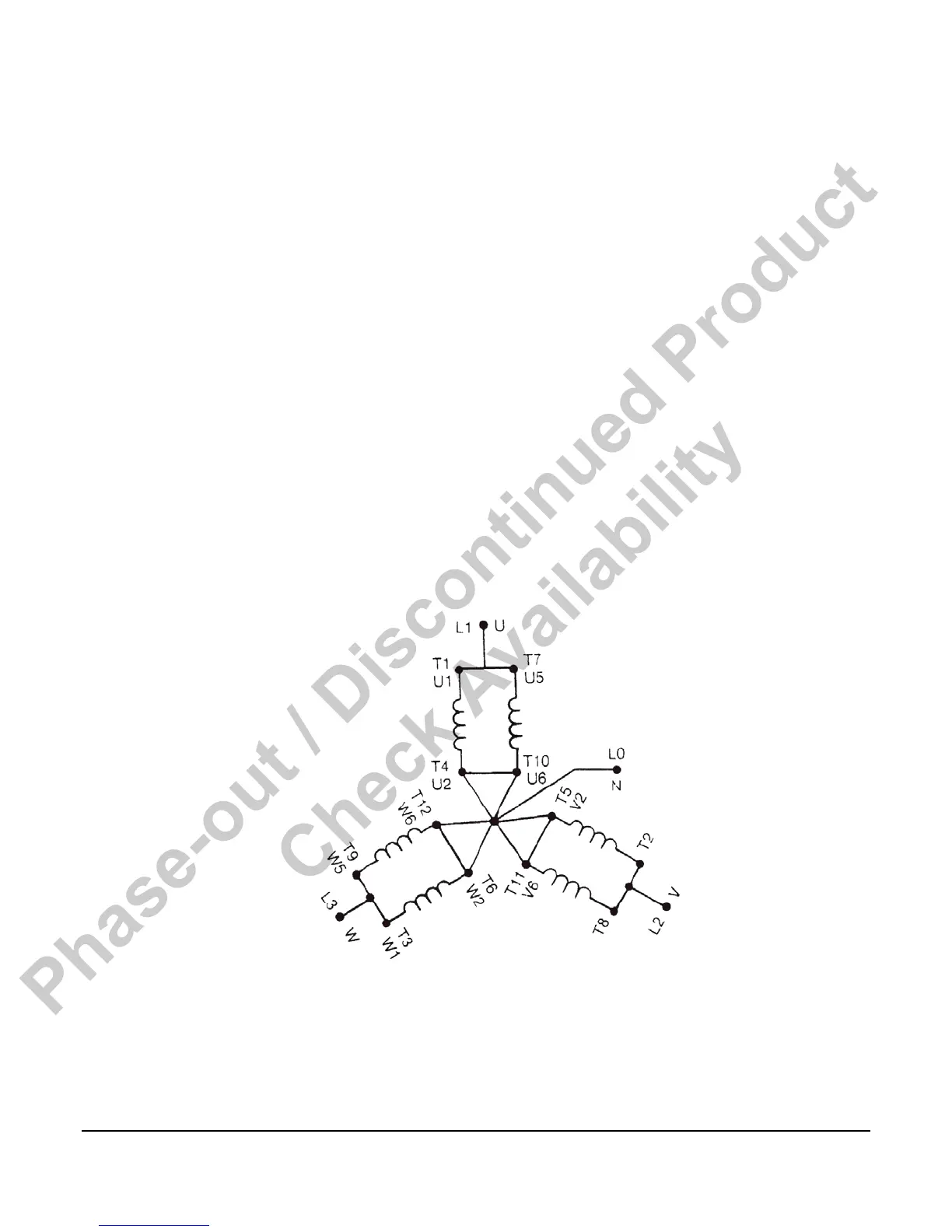

applications look like this schematic:
With the CT positioned on the coil winding just prior to the electrical connection of T7/T1,
T8/T2, and T9/T3 and voltage connections tied to the top of T7, T8, & T9 in both the high and
low voltage positions.
