Section 75 00-02-0522
04-06-11 - 42 -

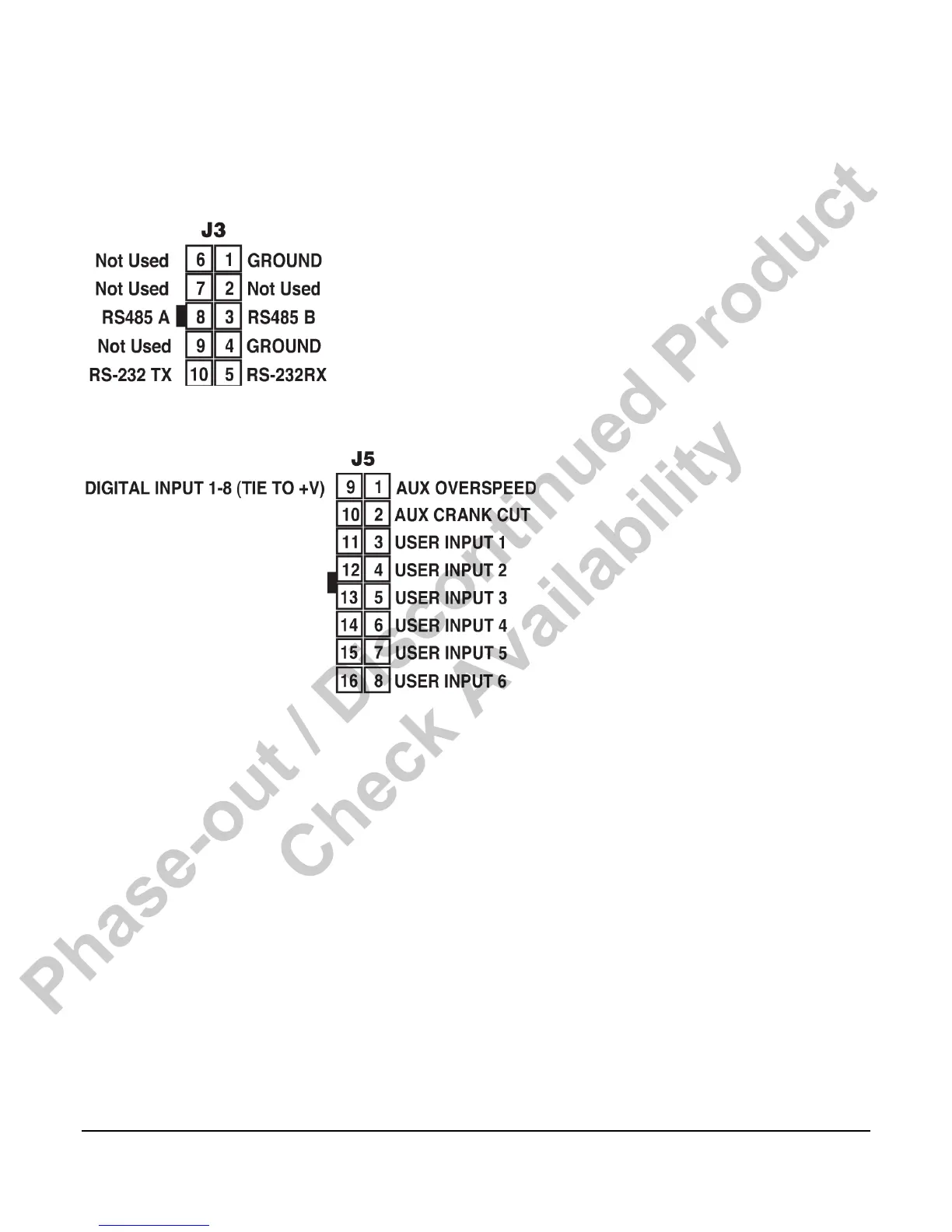

J3 – Communications Connector
This communications connector supports RS-232 for programming the controller with the
iGCON software tool, modem connection and the Modbus client (master) connection
J5 – Digital Inputs 1 - 8
Phase-out / Discontinued Product
Check Availability
