I/O Board Relays

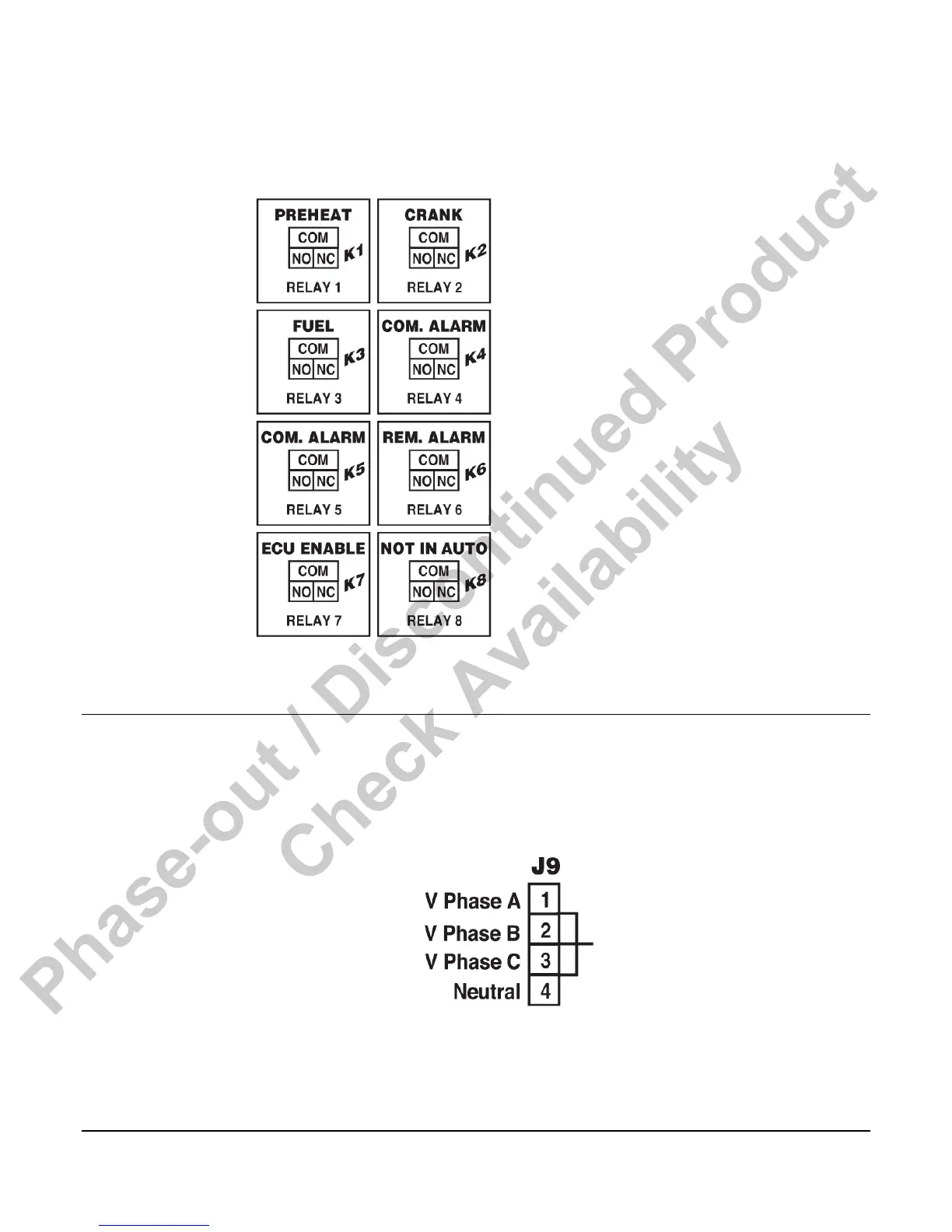

The 8 relays mounted on the I/O board are pre-programmed at the factory to:
Relays may be re-assigned to any of the other desired functions at will from the front panel.
Energy Monitoring Board (EMB)
From the rear of the unit, there is a smaller board on the left side. This is the energy monitoring
board. All the AC connections are made here. It has two single row black connectors labeled
J9 & J10.
J9 – AC Voltage Connections
