Power modules

User manual 57120_hdb_en_12 63 / 70

Standard wiring

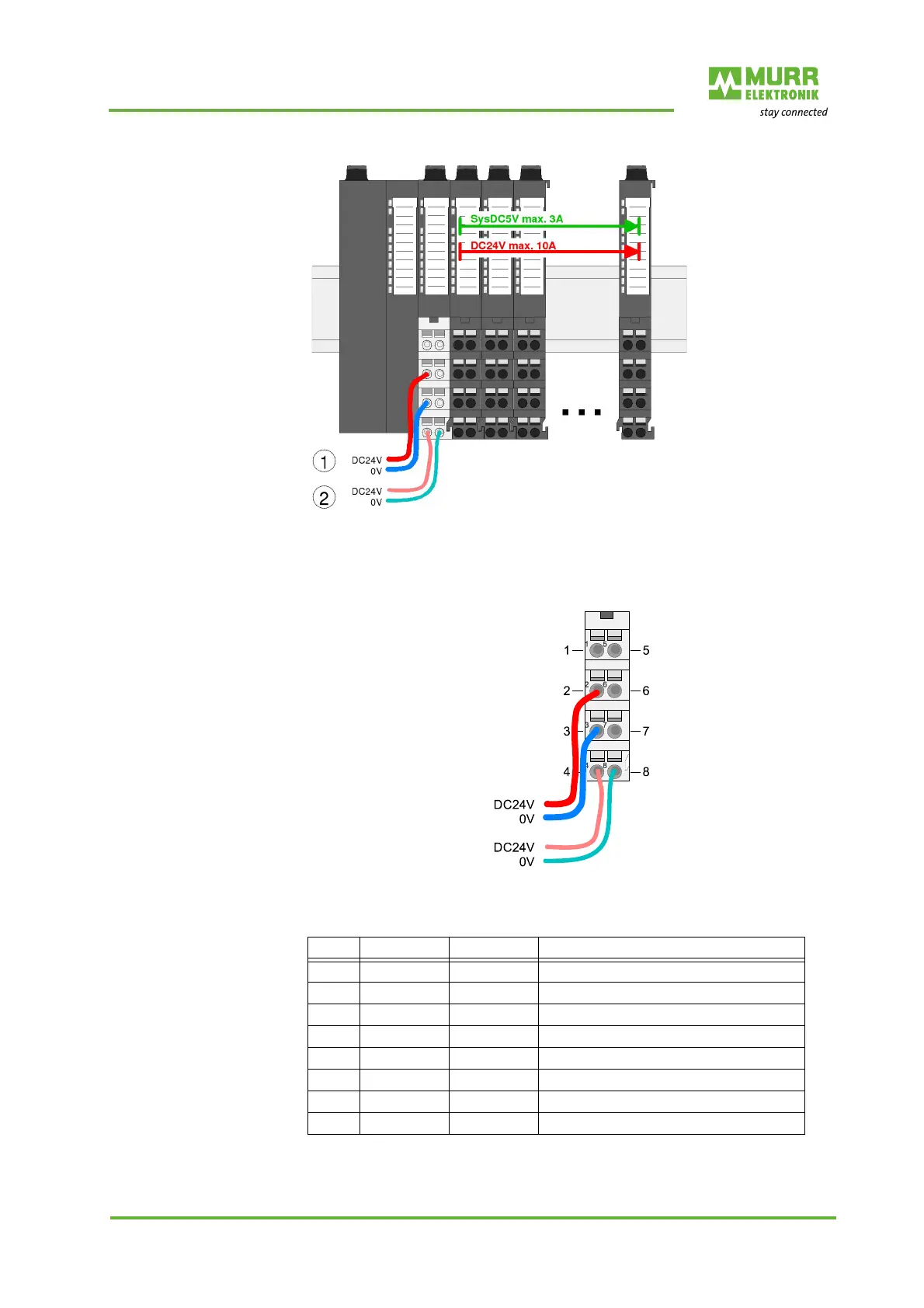

Fig. 10-4: Standard wiring

1 24 V DC for power supply of I/O level (max. 10 A)

2 24 V DC for electronics supply, bus node and I/O level

Standard wiring of the

power modules

Fig. 10-5: Standard wiring

For wires with a cross-section of 0.08 mm

to 1.5 mm

Pos. Function Type Description

1 - - not used

2 24 V DC Input 24 V DC for power supply

3 0 V Input GND for power supply

4 Sys 24 V DC Input 24 V DC for electronics supply

5 - - not used

6 24 V DC Input 24 V DC for power supply

7 0 V Input GND for power supply

8 Sys 0 V Input GND for electronics supply
