Configuration/settings
User manual 55530_hdb_en_16 116 / 156
Setting up an MRP do-
main

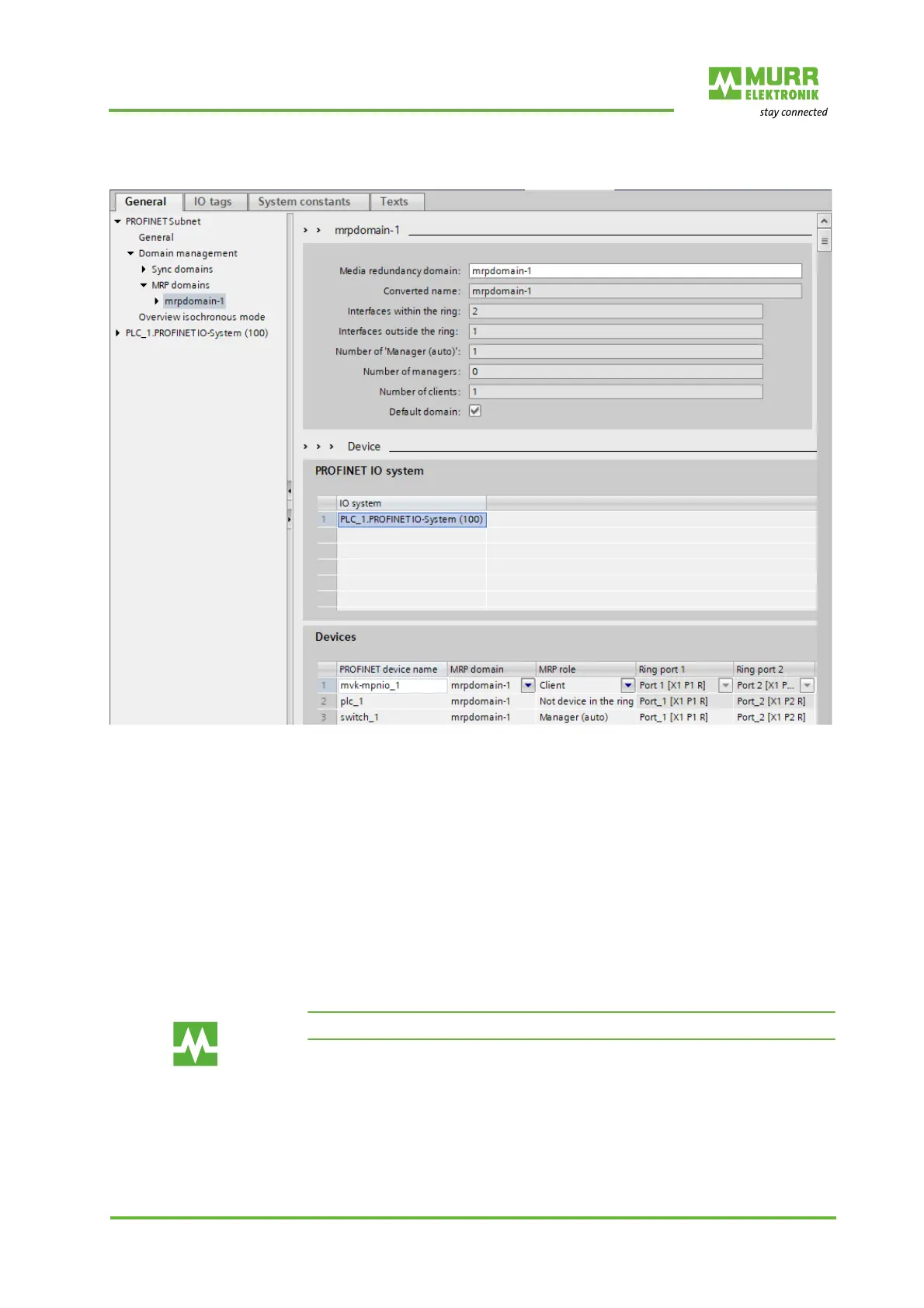

Fig. 8-44: Setting up an MRP domain
1 | Navigate to the menu item
Domain Management | MRP-Domains | mrpdomain-1
to obtain the overview of ring users.
2 | Assign the PROFINET Managed Switch to the IO controller.
3 | Save the created project.
4 | Click the PNIE subnet.
The bus PLC_1.PROFINET IO-System (100) is displayed.
5 | Assign the MVK-MPNIO module to the IO controller.
All users of the ring configuration are listed under Devices.
For further information, refer to chap. 3.2.4 "MRP"
