User Manual of VT1000
- 17 -
7. Installation
Please select experienced technicians to install this system.
The installation should be carried in the working condition for this system.
Install this system in a secret place.
Prevent this system from dust and humidity.
Connect the wires of the mainframe. The Relay can control oil pump wire or
electric wire (ACC). It suggested connecting it to oil pump wire.
Connect the wires of other wires, leave the plug unplugged.
Fixing, wiring connecting, binding should be carried on carefully.

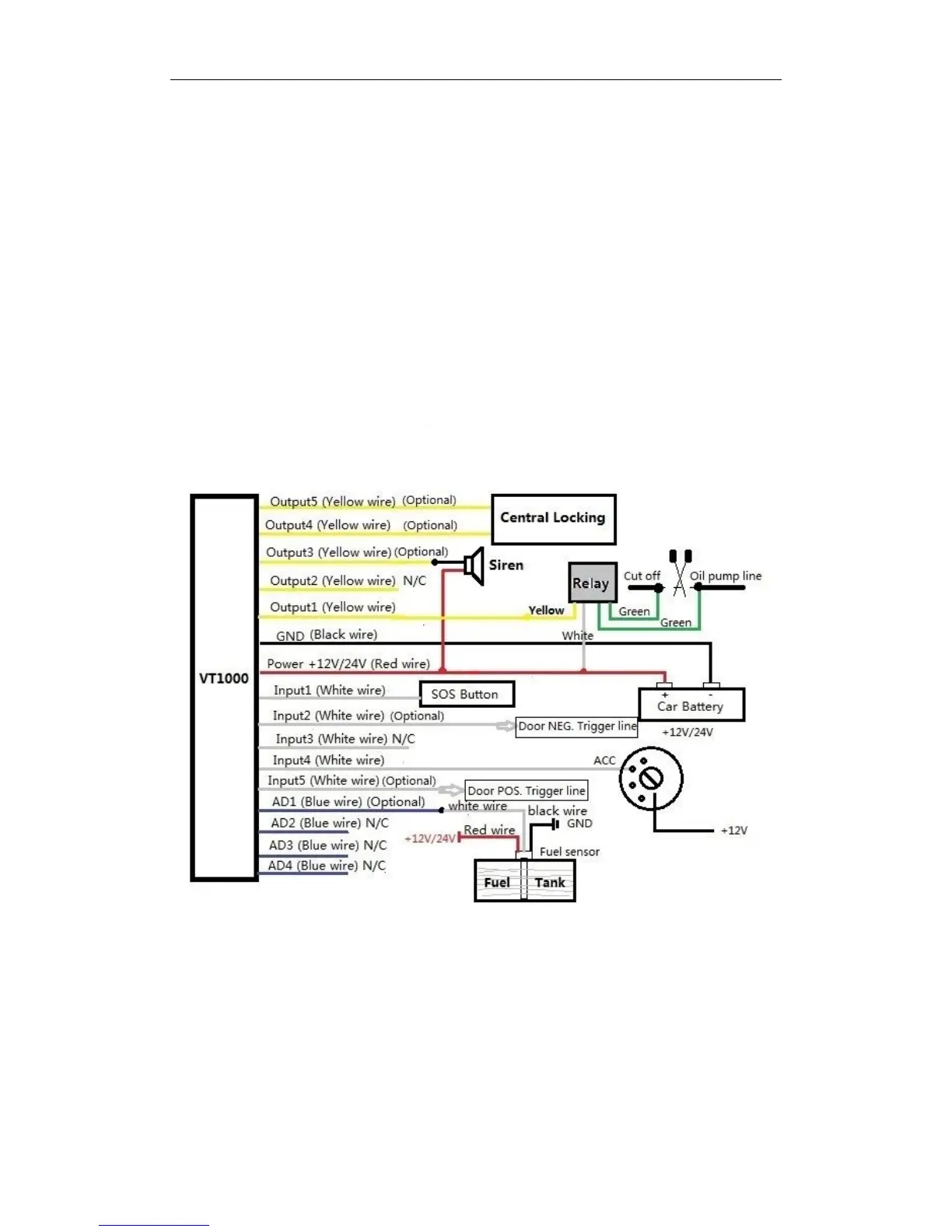

Installation Diagram
