User Manual of VT1000
- 34 -
Appendix 4: Configure and use of RFID function

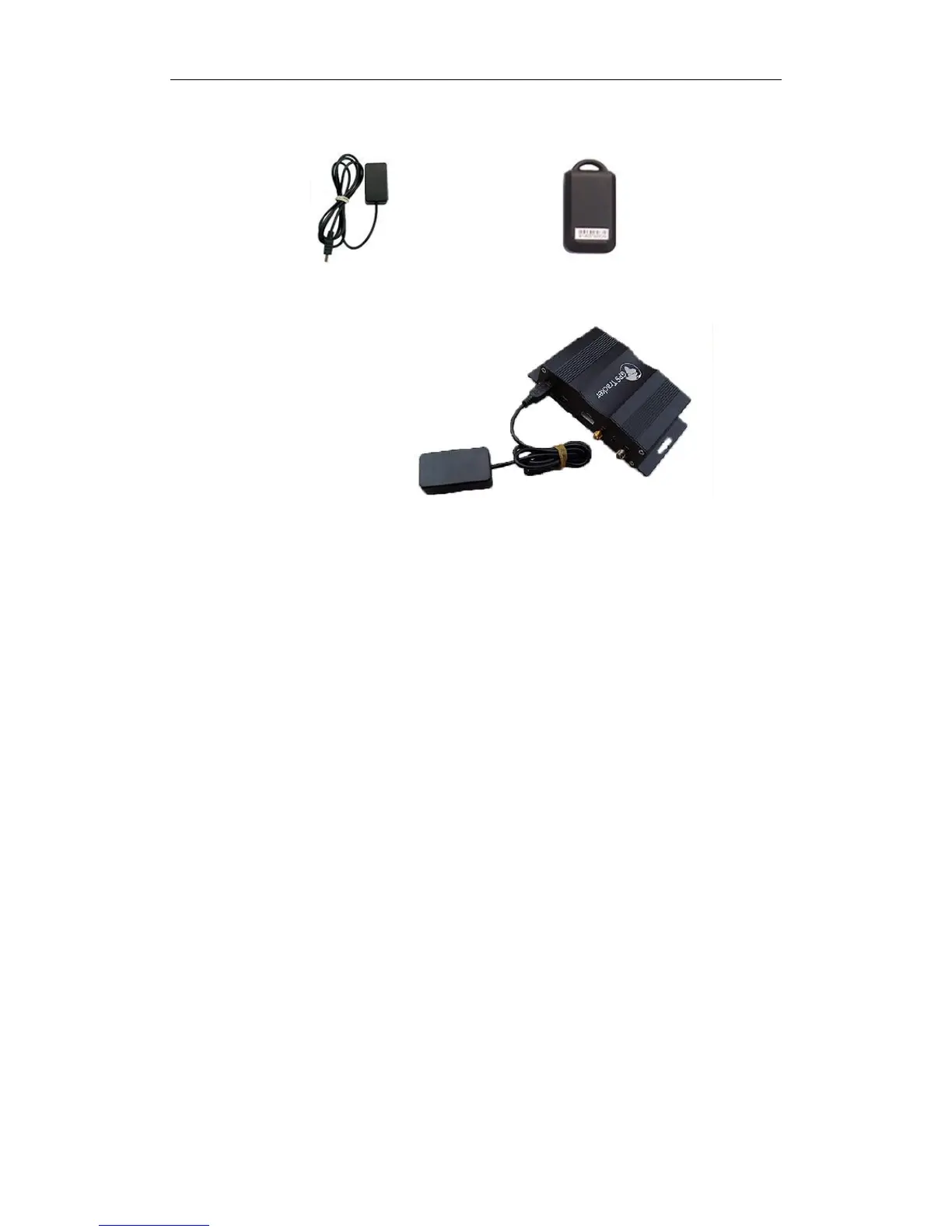

RFID Reader RFID Tag
1. Install RFID as following:
2. How to use
2.1 SMS Commands
2.1.1 Firstly, enable the RFID:
(1) Enable the RFID function：W000000,062,1
(2) Disable the RFID function: W000000,062,0
(3) The system default is RFID function enabled.
(4) When send the disarming SMS command”000000DSM”, it will automatic disable the RFID
function, and if send the enable SMS command the RFID function will be restored.
2.1.2 Secondly To configure authorized RFID tag by SMS commands
W<password>,060,ID1
W<password>,160,ID2
W<password>,260,ID3
W<password>,360,ID4
W<password>,460,ID5
Note: The default password is 000000
ID1, ID2, ID3, ID4, ID5 means 5 digital FRID number.
For example: if configure NO.00412 as the authorized RFID tag, then send SMS:
W000000,060,00412
Tracker will reply SMS “STUDY ID OK: 1:00412; 2:00000; 3:00000; 4:00000; 5:00000”, means
the 1st RFID tag number is 00412, the 2nd , 3rd, 4th, 5th RFID tag not set. If the RFID tag is
detected at this time, tracker will send SMS “NOW ID : 00412 “ .
Note: RFID reader detecting test RFID tag distance is within 5 meters, the RFID tag must
be detected before RFID can be used.
2.1.3 The ARMING SMS command: “<password>ARM ”
The disarming SMS command “<password>DSM ”,
When send the disarming SMS command “000000DSM”, it will automatic disable the
