User Manual of VT1000
- 18 -

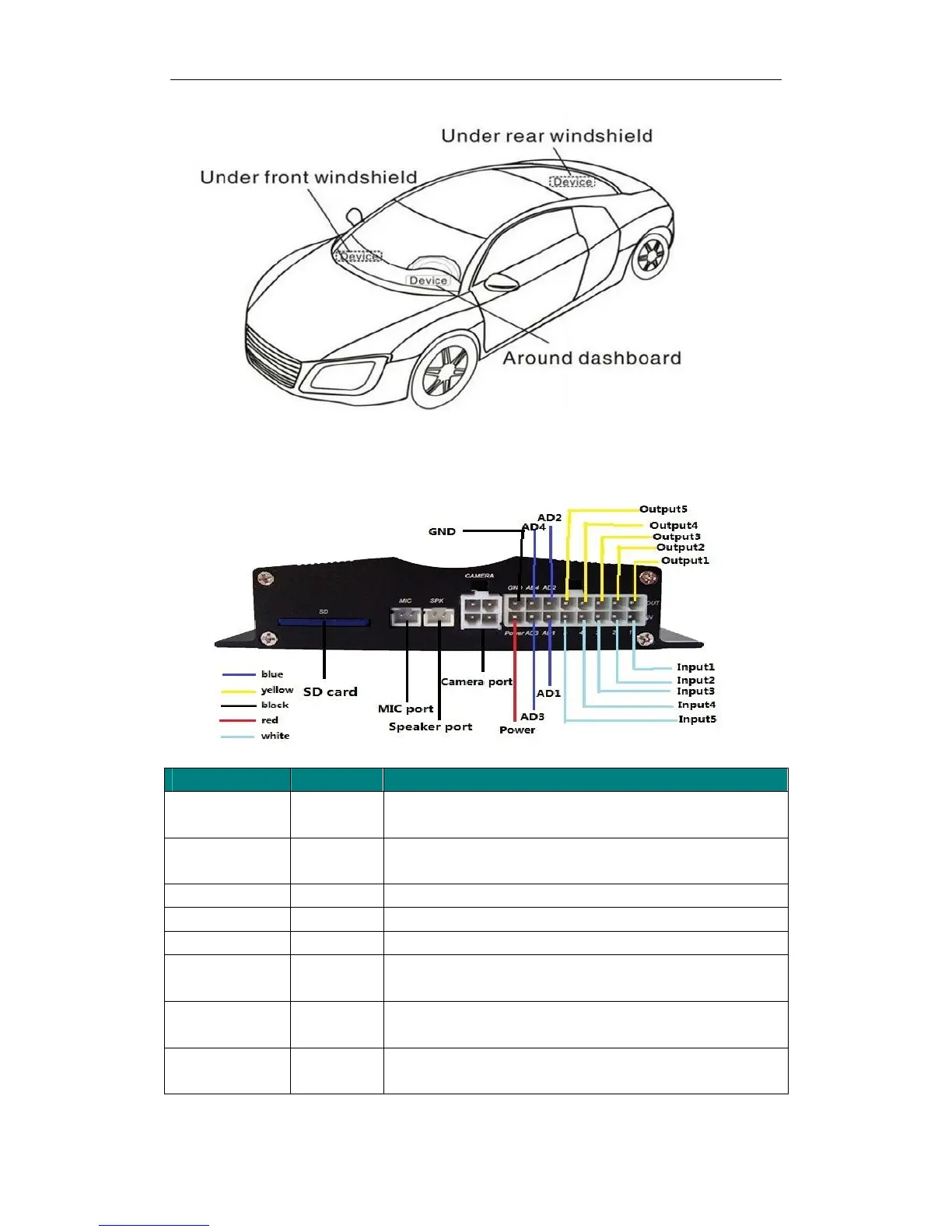

7.1 Install I/O Cable
The I/O cable is a 16-pin cable including power, analog input, negative/positive input and output.
PIN Number Color Description
Input 1/SOS White wire Digital Input 1 (negative triggering), E.g. connect SOS panic
button
Input 2 White wire Digital Input 2 (negative triggering), E.g. detecting status of
vehicle door on/off
Input 3 White wire Digital Input 3 (negative triggering)
Input 4 White wire Digital Input 4 (positive triggering), e.g. detecting the ACC
Input 5 White wire Digital Input 5 (positive triggering)
AD 1 Blue wire 10 bits Resolution Analog Inputs. 0-6V DC Detection. It can
be used to connect with temperature/fuel sensor etc.
AD 3 Blue wire 10 bits Resolution Analog Inputs. 0-6V DC Detection. It can
be used to connect with temperature/fuel sensor etc.
Output 1 Yellow wire
Output1. It can be used to connect with relay for engine
immobilization.
