User Manual of VT1000

- 19 -

Output 2 Yellow wire

Output 3 Yellow wire

E.g. connected with siren

Output 4 Yellow wire

E.g. Unlocked car door

Output 5 Yellow wire

E.g. Lock car door

AD2 Blue 10 bits Resolution Analog Inputs. 0-6V DC Detection. It can

be used to connect with temperature/fuel sensor etc.

AD4 Blue 10 bits Resolution Analog Inputs. 0-6V DC Detection. It can

be used to connect with temperature/fuel sensor etc.

GND Black Ground, Negative

POWER Red DC in (power source). Input voltage: 9V-36V, 12V suggested.

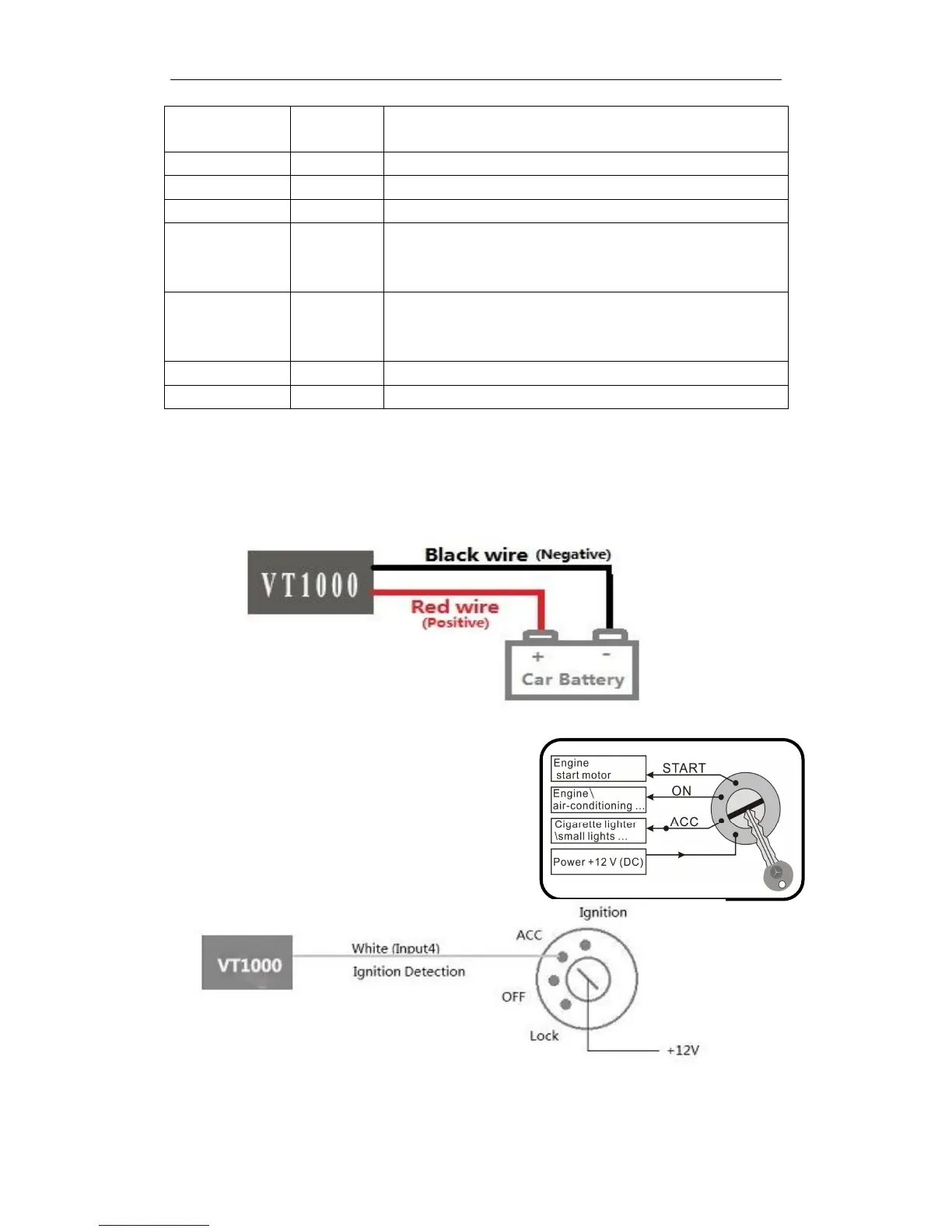

7.2 Power/GND

Connect GND (Black) and power(Red) wires to the battery of vehicle.

7.3 Digital Input

Example: Detecting vehicle engine on/off status
