User Manual of VT1000
- 38 -

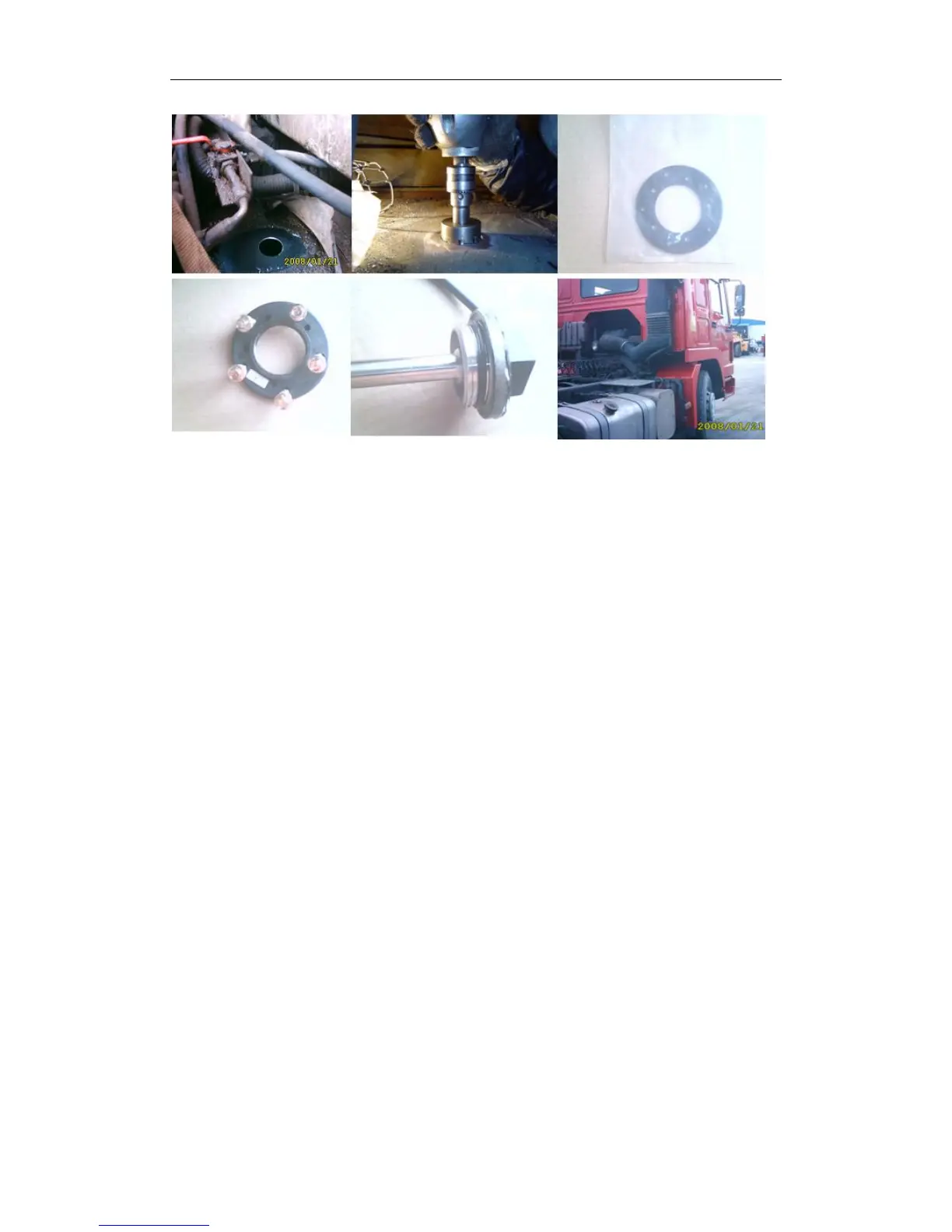

1.2 Operation procedures:
1.2.1 Find the position
Generally installed in the middle of the fuel tank, to avoid the original fuel floater
1.2.2 Clean the oil stain on the installation position
Clean the oil stain on the installation position
1.2.3 Holing
Use hand-drill with a 42mm metal drill bit, connect the power supply and drill in the
position (Note: please do not drill too fast, stop when it is about to drop, then use the screwdriver
and sharp-nose plier to remove the attached metal scraps to prevent them dropping into the tank ).
Special note: Make sure to open the fuel tank cap before drilling; it’s better to drain away all
diesel, if not, just make sure not too full in the tank.
1.2.4 Cleaning work
Use the grater to polish the rough selvedge;
Use a rope-tied magnet to adsorb the iron scraps.
1.3 Flange installation
1.3.1 Put the gasket under the flange and holing, then tighten with screws.
1.3.2 Put sealing ring
1.3.3 The sensor has two circle sealing rings, first fit the bigger ring and then the small one, fix
them on the top of the sensor, see the flow chart.
1.3.4 Screw tighten the sensor
1.3.5 Put the sensor into the flange opening, and screw tighten along the screw thread direction,
then wiring and wrapping.
1.3.6 Power supply of the fuel sensor
The sensor power voltage is 18-32VDC. Note: Do not connect the biggest power line in
the vehicle, please connect the normal size power line, otherwise will burn the sensor.
1.4 Tools required
Tools: Hand-drill, Metal hole saw, Hex tapping screws (3cm)
