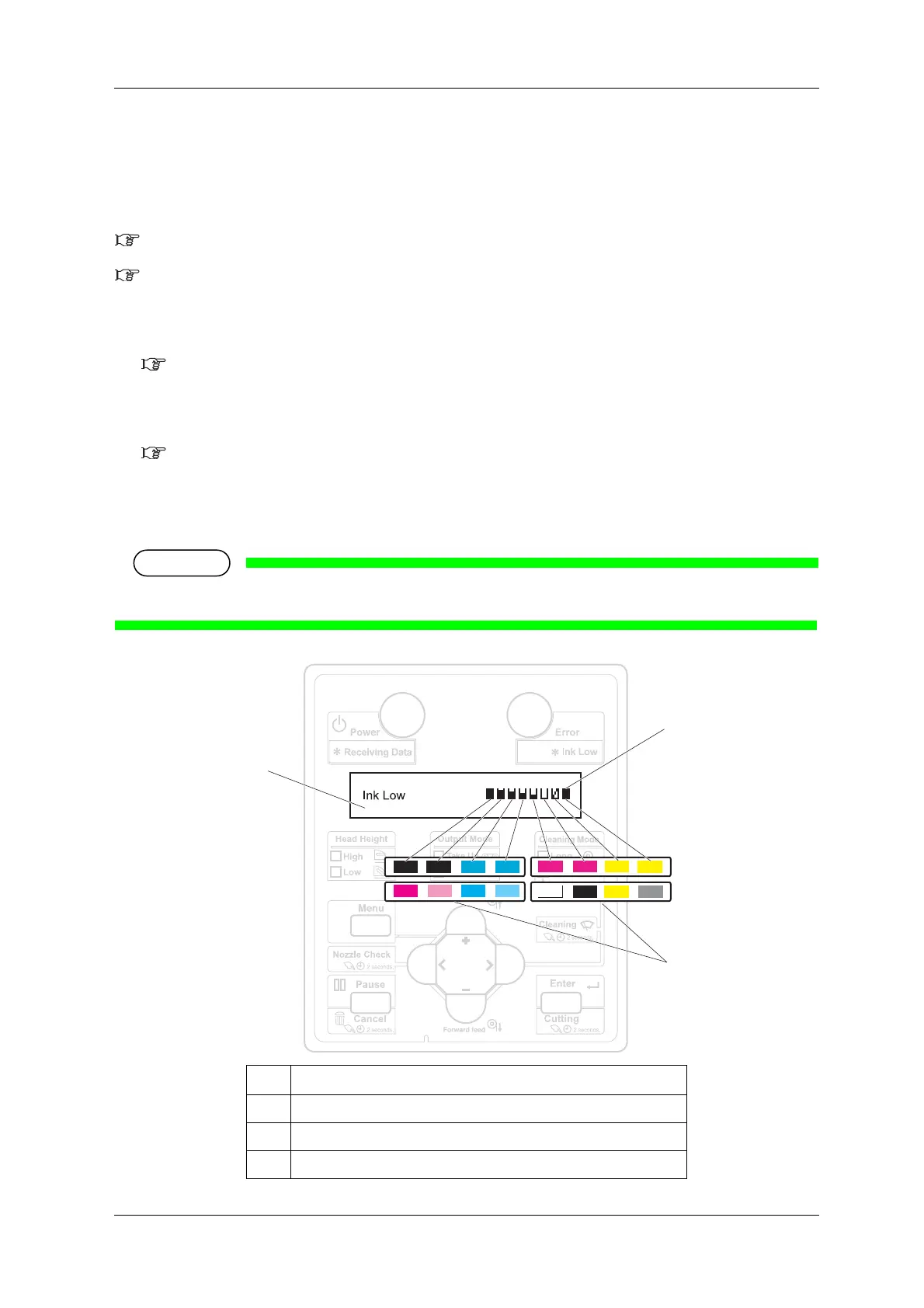

2.2.4 Ink level indicator
When the “Remain Ink menu” on Display menu is set to “On”, the ink level indicator that discribes the
ink or ink cartridge status is displayed on LCD monitor.
5.7 Display menu
5.7.4 Remain Ink menu
• In the normal operation
2.3.1 Status
• During printing
• To display ink or cartridge errors
7.2.2 Message type error display and remedies
The indicator and the corresponding Ink color labels are shown below.
NOTE
• The ink color labels are attached to the top of the ink cartridge slots.
No. Name
1 LCD display section
2 Ink level indicator
3 Ink color label
K
k
C c
M m Y
y
LmLm C LcLc
K Y LkLk
M
CL
1
3
2
4 Color
7 Color
