Suspension and wheels
F
- 78 -

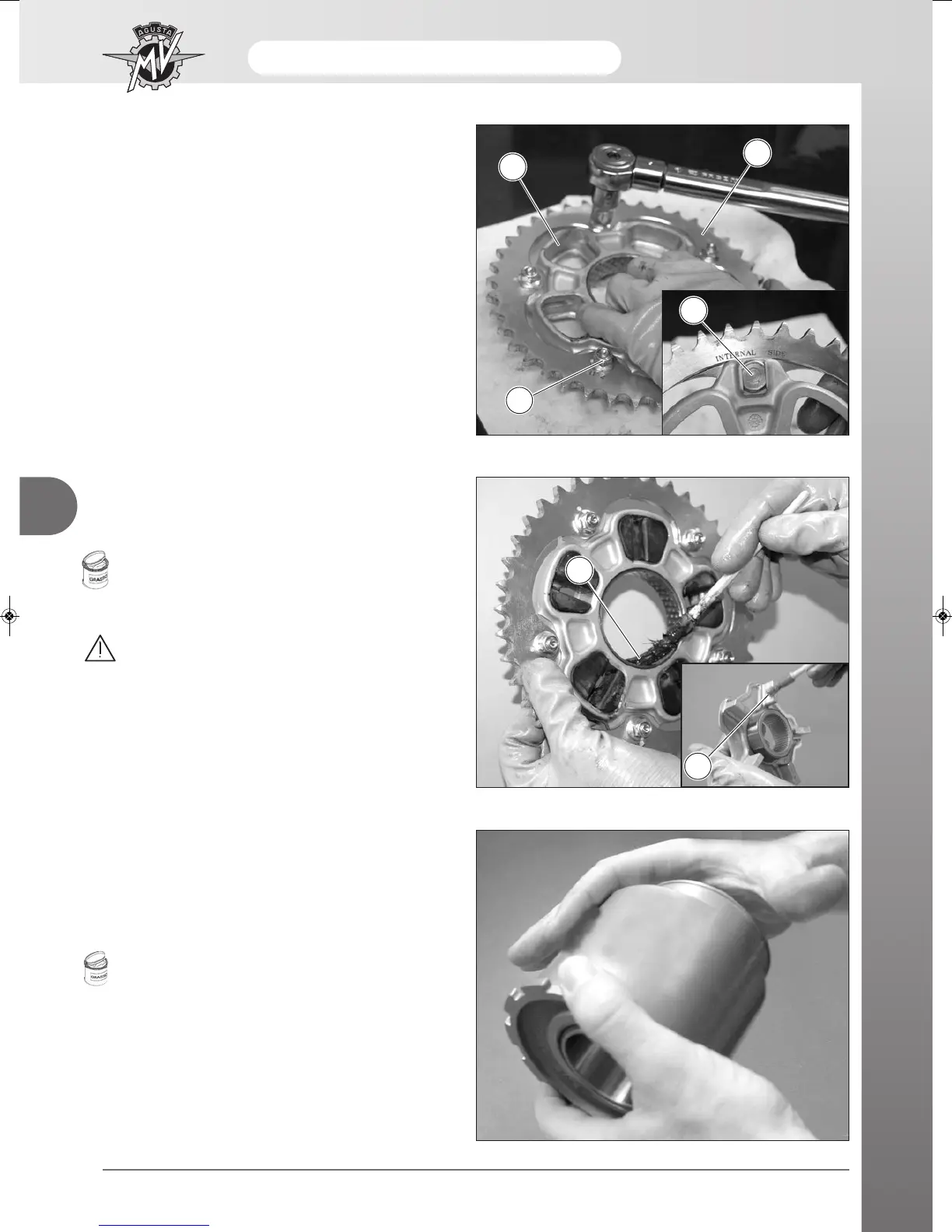

Remove the 5 nuts (3) to free the crown (1) from the
crown flange (2).
Replace the crown.
Remount the new crown on the crown flange, making
sure the pins (4) enter the holes.
Check that the coupling bushes of the gear flange sup-
port (1) and the driving flange (2) do not show any signs
of excessive or uneven wear.
Bushes coupling area (1):
Grease AGIP GR SM
Bushes coupling area (2):
Grease AGIP GREASE 30
Do not apply grease to the threads of the pins.
Reassembly wheel hub
Lightly grease the wheel hub.
Introduce the hub to the swingarm from the left side of
the motorcycle and push it in.
Screw in the two screws on the swingarm without tigh-
tening.
Recommended grease: Agip Grease 30
