Suspension and wheels
F
- 79 -

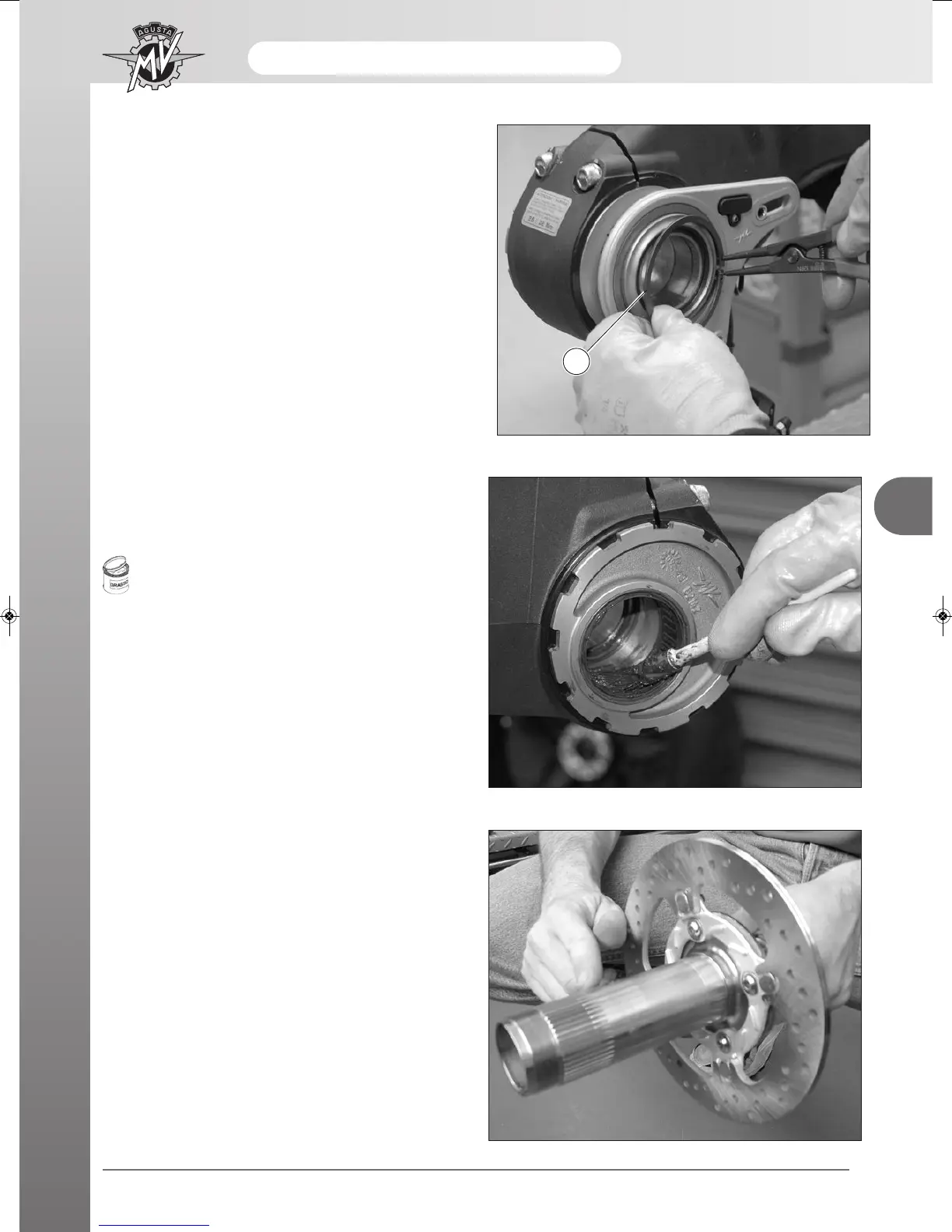

To assemble the brake caliper-carrying flange, carry
out the following operations:
Grease the O-rings and insert them into their respecti-
ve seats on the flange.
Assemble the rear spacer ring in contact with the hub,
then the brake caliper-carrying flange (1), the second
spacer ring and the Seeger retaining ring (1).
It is important to ensure that the Seeger retaining ring
is inserted around the whole circumference of the seat.
Grease the roller bearing.
Introduce the first bush, the spacer and then the
second bush.
The grease used must have the following
characteristics:
– Lithium soap grease with a mineral oil base
– Consistency NLGI: 2
– Dripping point: 181° C
– Viscosity at 37.8°C: 140 cSt
– Temperature field: from -25°C to +120°C
Reassembly rear wheel pin
Grease the wheel pin and introduce it carefully into the
hub.
1
