Suspension and wheels
F
- 80 -

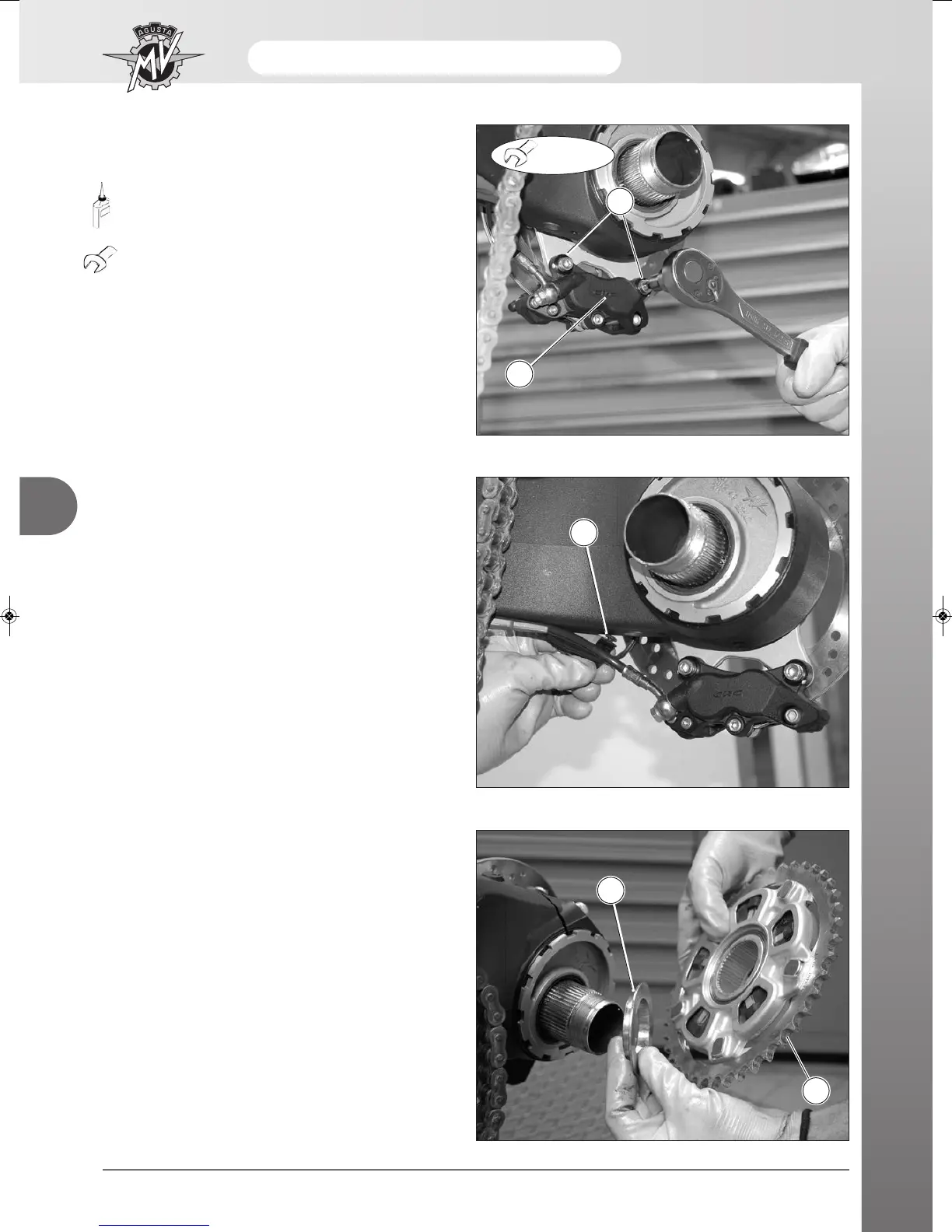

Reassemble the brake caliper (1) and tighten the fixing
screws (2) at the specified torque.
Special product: Loctite 243
Torque pressure: 18 N•m
Reinsert the rubber clamp (1) around the rear brake
pipe.
Insert the spacer with neck illustrated in the figure onto
the wheel pin.
Insert the crown wheel assembly, the second spacer
ring and the wheel pin fixing nut.
Reassemble the chain as described at pages 58÷63 of
this chapter.
2
1
18 N•m
1
2
3
