mycom 220JS-V User Manual

2205B0JE-DA-J-N_2014.05.
5 Maintenance and Inspection
Screw Compressor J-series 5.4 Disassembly and Assembly of the Compressor
5-26
5.4.7.1 Common Precautions for Removal/Installation
 Retaining ring E type/Vi position sensor rod
 The Retaining ring E type may jump out, causing injuries. Make sure to use a
Retaining ring E type removing/attaching tool of suitable size and wear protective
tools such as protective goggles.
 Because the Vi position sensor assembly uses a spring, the Vi position sensor rod
may jump out and cause injuries. During and after retaining ring removal, do not
direct the Vi position sensor assembly toward anyone.
5.4.7.2 Precautions for Removal
 Sensor box lid
 The sensor box lid mounting bolts are structured so that they do not drop off from the lid.
 Vi position sensor assembly
1.
To remove the Vi position sensor rod housing, turn the Vi position sensor rod plug (No.715)
clockwise using a wrench.
5.4.7.3 Precautions for Installation
 O-ring
1.
Make sure that all necessary O-rings are attached. (In particular, part No. 714)

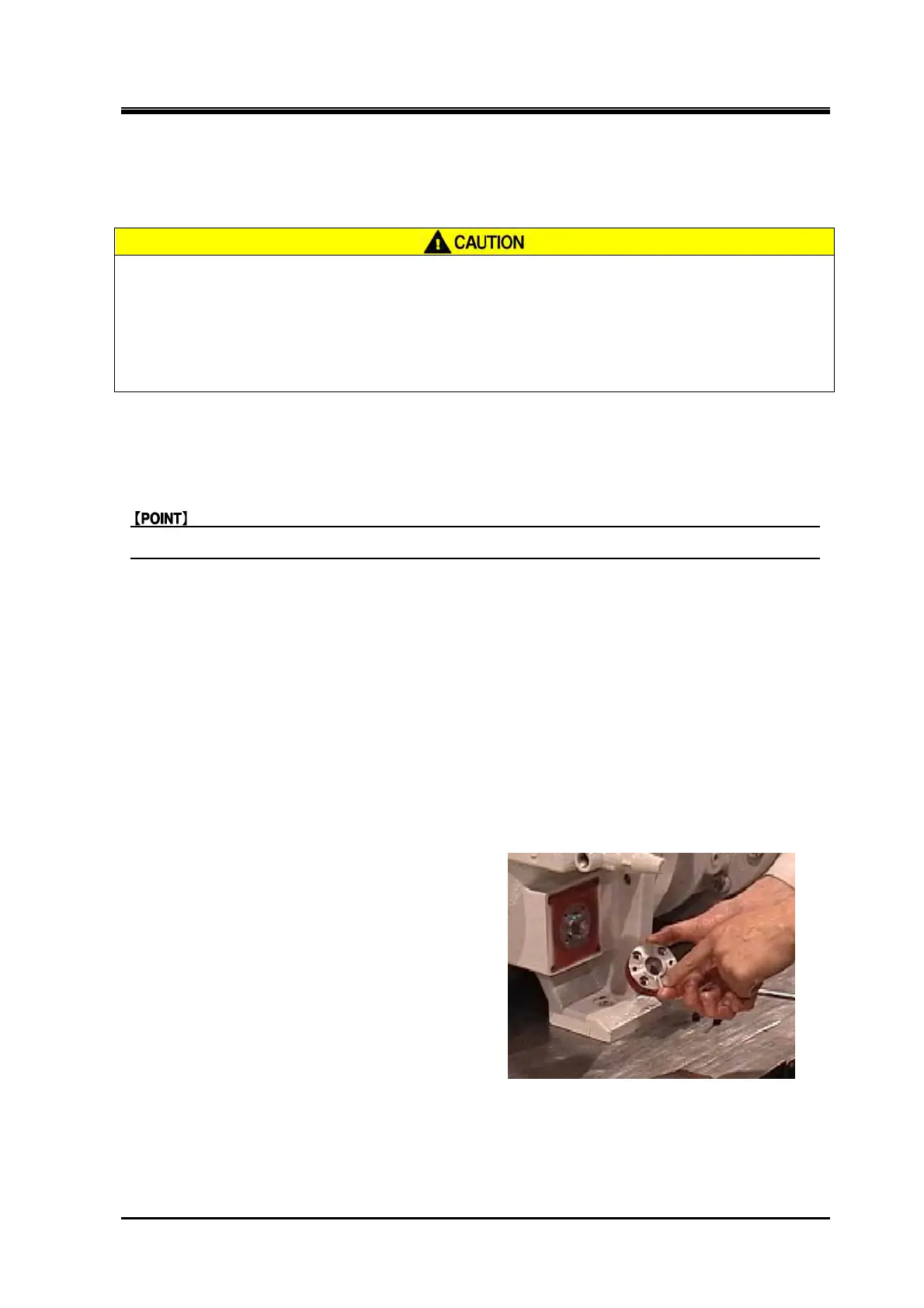

 Vi position sensor rod housing gland
1.
Install the Vi position sensor rod housing
gland of the groove facing down.
