2 Structure and Specifications of the Compressor
Screw Compressor J-series 2.8 Variable Vi Control
2-30
2.8.3.2 Fixed Vi Mode
The J-series also allows for fixed Vi if the operating conditions are stable and the automatic variable Vi
control is not necessary.
Note, however, a specified controller is required to adjust the variable Vi slide valve to the desired Vi
value. It is able to set Vi to the following three ports: L port (Vi=2.5), M port (Vi=3.5), H port (Vi=5.0).
Note 1: For the J-series, a specified controller is always required.
2.8.4 Vi Position Sensor

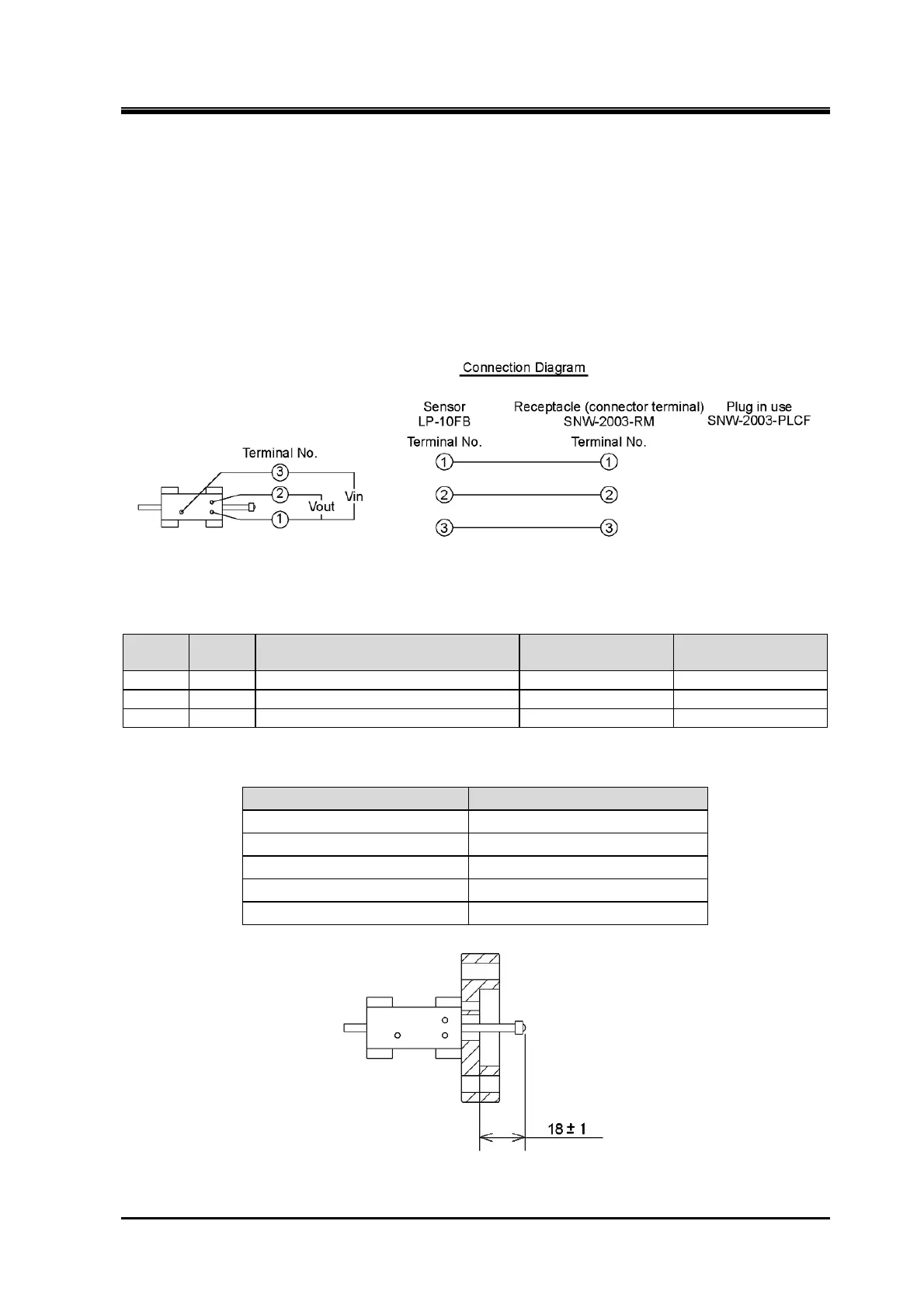

Figure 2-27 Vi Sensor Wiring Diagram
Table 2-9 Relationship between Vi and Vi Sensor Output
Port Vi Ratio to full stroke (%) Resistance (Ω )
Output voltage
ratio (%)
L 2.5 0 830 83
M 3.5 56 550 55
H 5.0 100 330 33
Table 2-10 Specifications of the Potentiometer
Item Specifications
Total resistance 1kΩ ±20%
Rated power 0.3W/50°C
Insulation resistance 100MΩ or more 500V DC
Withstanding voltage 500V AC for 1 minute
Working temperature range -40—100°C
Figure 2-28 Vi Sensor Dimensions
