mycom 220JS-V User Manual

2205B0JE-DA-J-N_2014.05.
5 Maintenance and Inspection
Screw Compressor J-series 5.4 Disassembly and Assembly of the Compressor
5-72

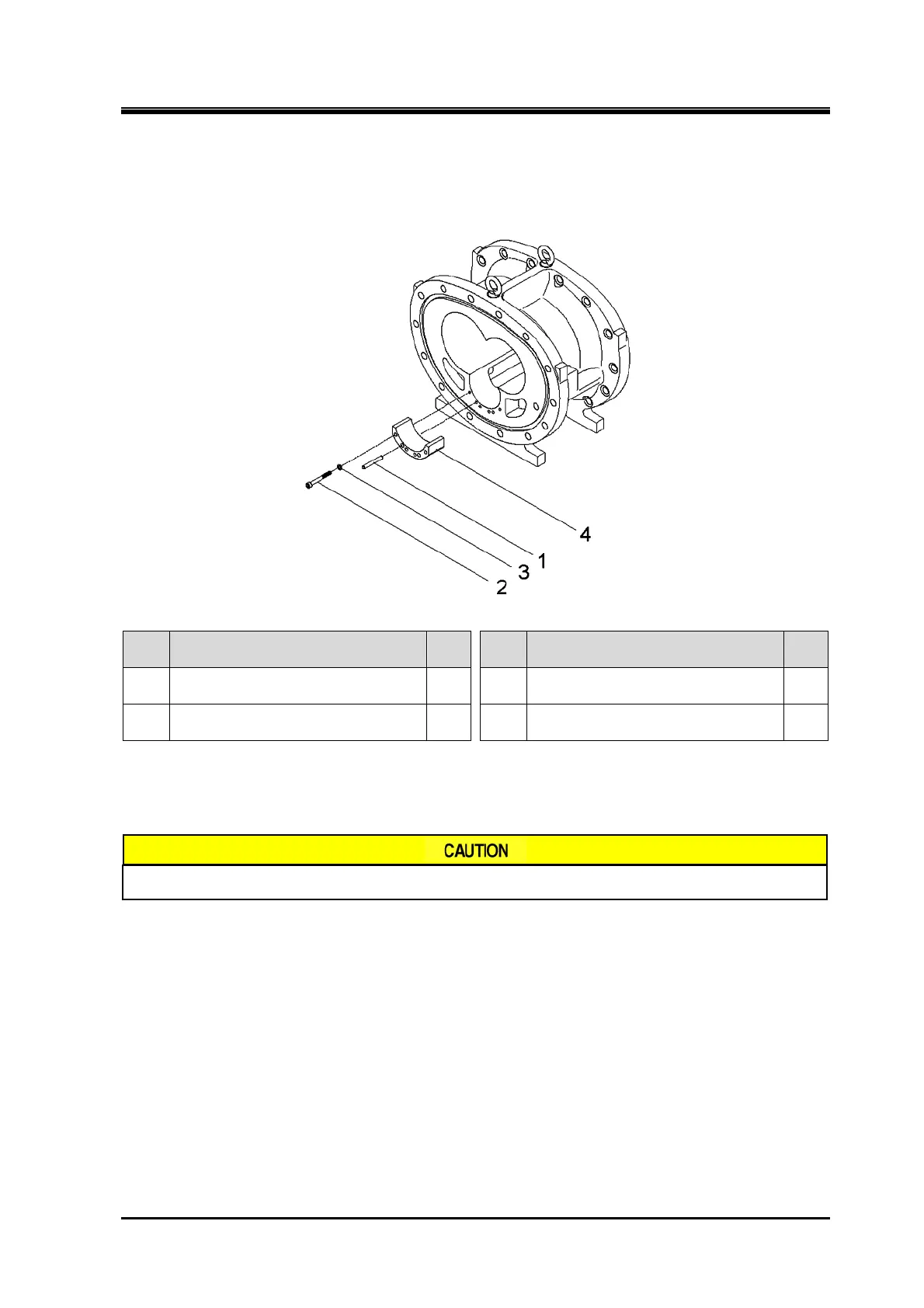

5.4.23 Unloader Slide Valve Guide
Order Description
Part
No.
Order Description
Part
No.
1
Parallel pin
(8 dia.×60/8 dia.×80/13 dia.×100)
249 3 Spring lock washer 248
2
Hexagon socket head cap screw
(M8×70/M8×90/M10×110)
247 4 Guide, unloader slide valve 246
1. Remove the parts in the order of the numbers shown in the figure.
2. Install the parts in the reverse order of removing.
 For periodic inspection, do not remove the unloader slide valve guide.
