mycom 220JS-V User Manual

2205B0JE-DA-J-N_2014.05.
2 Structure and Specifications of the Compressor
Screw Compressor J-series 2.7 Capacity Control Characteristics
2-27
2.7 Capacity Control Characteristics
The J-series can vary capacity continuously using the slide valve capacity control structure.
This control system offers a wide capacity control range with high efficiency by hydraulic control.

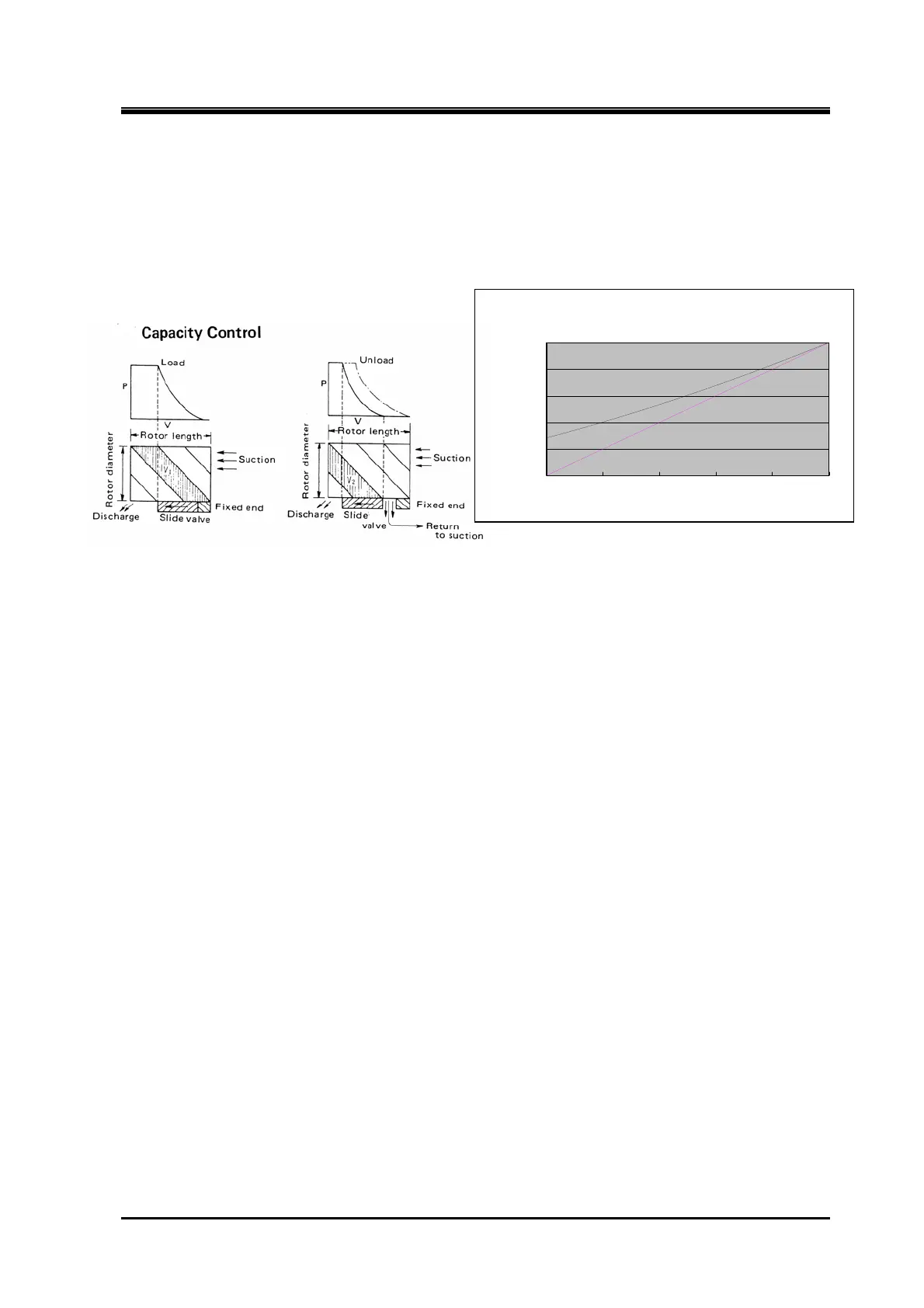

Figure 2-23 Slide Valve Capacity Control Structure and Capacity Control Characteristics
Example of Capacity Characteristics
N170JL-L
0%
20%
40%
60%
80%
100%
0% 20% 40% 60% 80% 100%
Capacity (Indicated load % )
BKW %
