5 Maintenance and Inspection
Screw Compressor J-series 5.4 Disassembly and Assembly of the Compressor
5-34
5.4.10 Unloader Indicator/Capacity Control Solenoid Valve
 170J/220J
Order Description
Part
No.
Order Description
Part
No.
1
Assembly, unloader indicator 120
8
Capacity control / variable Vi
solenoid valve
562
2
3 or Solenoid valve dummy block
4 9 O-ring 561
5 10
Hexagon socket head cap screw
(M5×75)
535
6
Hexagon socket head cap screw
(M5×75)
535
11 Spring lock washer 536
12
Capacity control / variable Vi
solenoid valve
562
7 Spring lock washer 536 13 O-ring 561

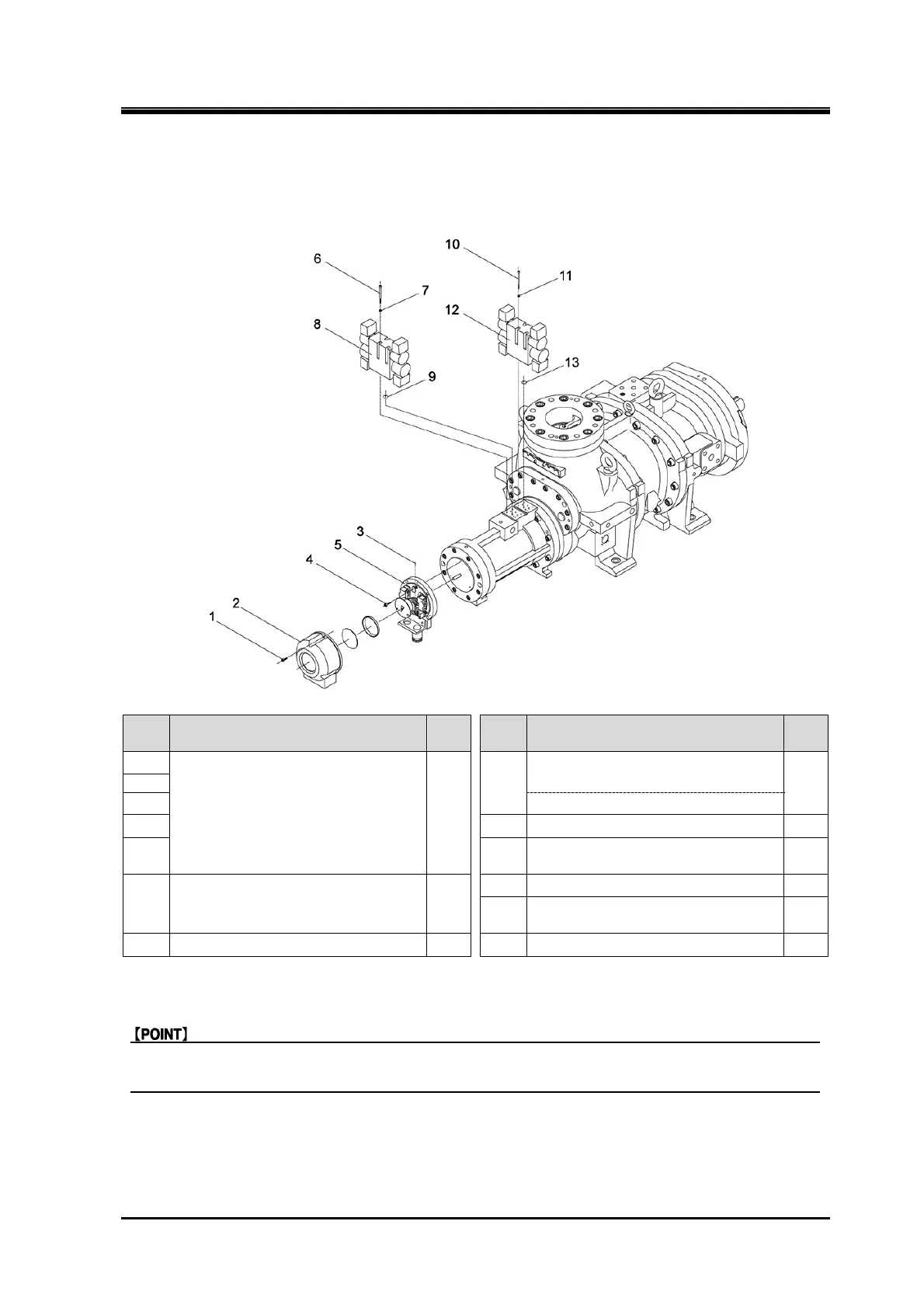

1. Remove the parts in the order of the numbers shown in the figure.
2. Install the parts in the reverse order of removing.
 Make sure to remove all drain plugs and don’t cover the outlet of oil and the inlet of oil for
hydraulic cylinder before removing the solenoid valve.
NOTE:
According to the design modification notification as of January 2014, J series unloader indicators have
all changed to explosion-proof type which is newly designed. For details of this new unloader indicators
refer to their instruction manual provided separately.
