mycom 220JS-V

2205B0JE-DA-J-N_2014.05.
5 Maintenance and Inspection
Screw Compressor J-series 5.4 Disassembly and Assembly of the Compressor
5-55
 220J/280J
Order Description
Part
No.
Order Description
Part
No.
1
Hexagon socket
head cap screw
(M12×50/ M16×65)
45 12 Locknut (AN12/AN16) 39-2
2 Spring lock washer 46 13 Torsional slip washer 237-2
3 Thrust bearing gland, male rotor 43-1 14 Lock washer (AW12/AW16) 40-2
4
Hexagon socket head cap screw
(M12×50/ M16×65)
45 15 Thrust washer, male rotor 250-1
5 Conical sring washer 46 16 Thrust washer, female rotor 250-2
6 Thrust bearing gland, female rotor 43-2 17 Thrust bearing assembly, male rotor 38-1
7
Thrust bearing gland spacer, male
rotor
44
-1 18
Thrust bearing assembly, female
rotor
38-2
8
Thrust bearing gland spacer, female
rotor
44
-2 19
Thrust bearing outer race spacer,
male rotor (only for 220J)
41-1
9 Locknut (AN16/AN20) 39-1 20
Thrust bearing alignment spacer,
male rotor
42-1
10 Torsional slip washer 237-1 21
Thrust bearing outer race spacer,
female rotor (only for 220J)
41-2
11 Lock washer (AW16/AW20) 40-1 22
Thrust bearing alignment spacer,
female rotor
42-2

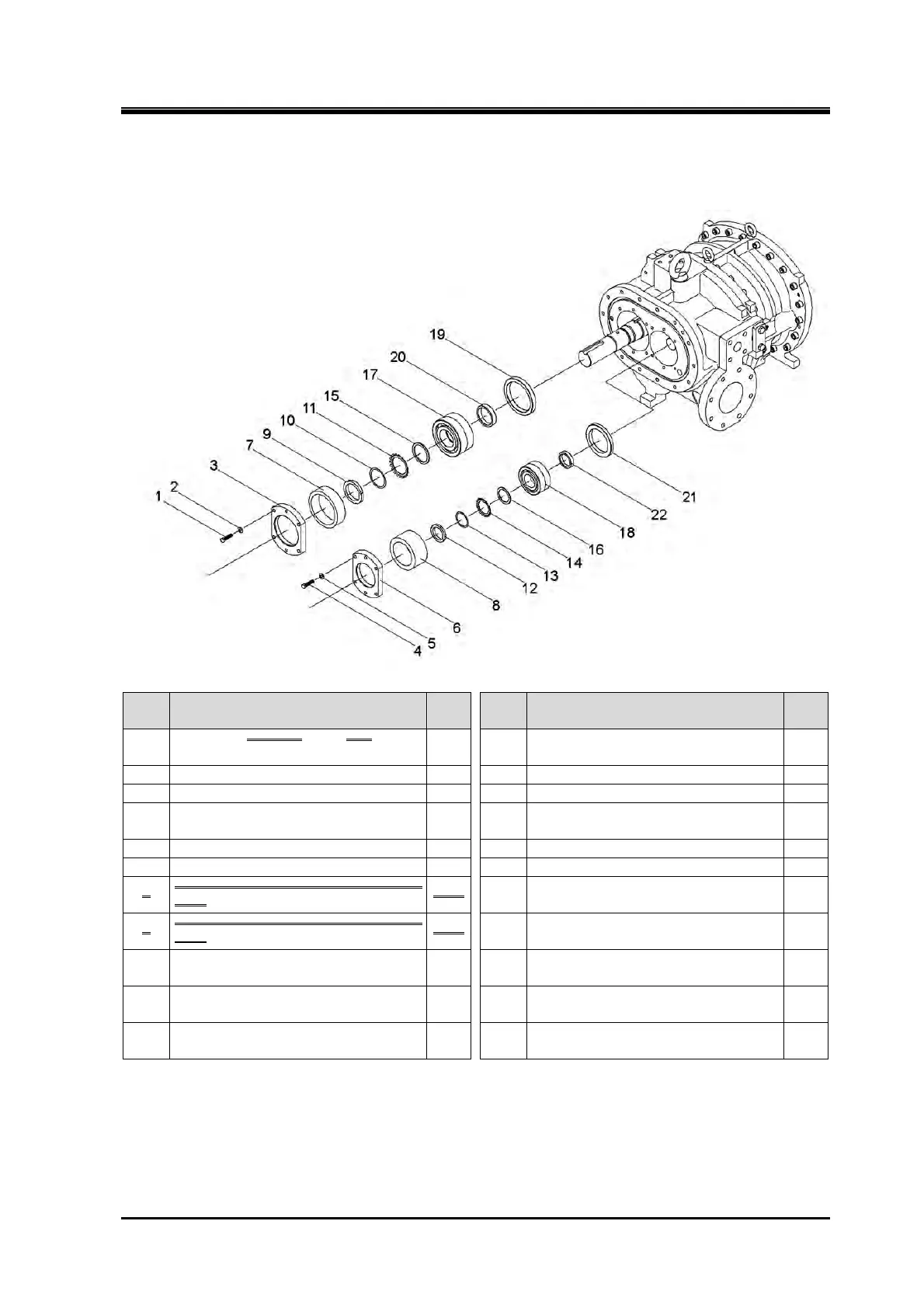

1. Remove the parts in the order of the numbers shown in the figure.
2. Install the parts in the reverse order of removing.
