2 Structure and Specifications of the Compressor
Screw Compressor J-series 2.3 Compressor Specifications
2-6

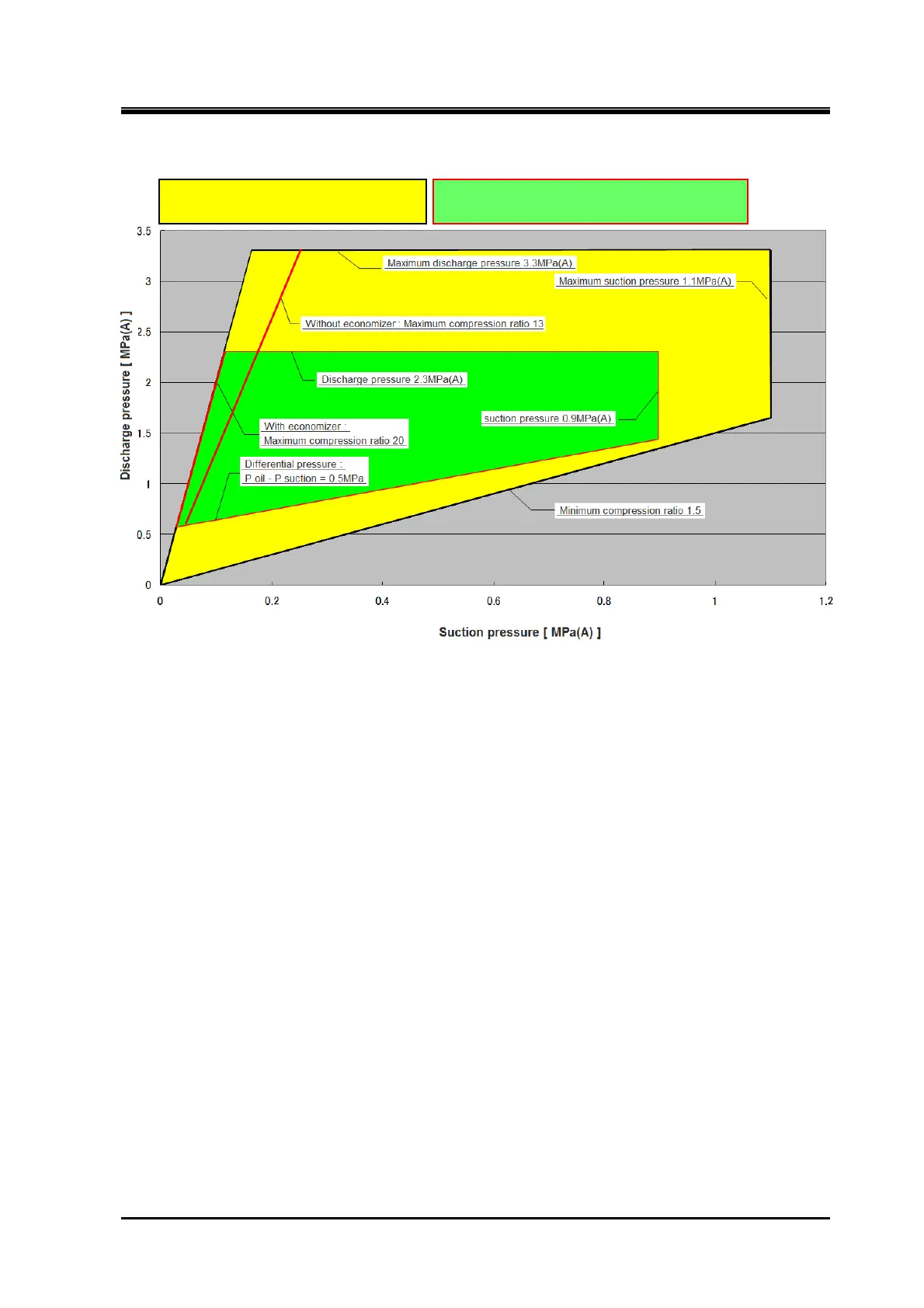

Figure 2-1 Operation Limits Chart
NOTE1: The pressure values in the operation limit chart are absolute values [MPa (A)].
Operation range
(Pressurized lubrication by oil pump)
Operation range
(Lubrication supplied by differential pressure)
