2 Structure and Specifications of the Compressor
Screw Compressor J-series 2.4 Structure of the Compressor
2-20
794 ASSY

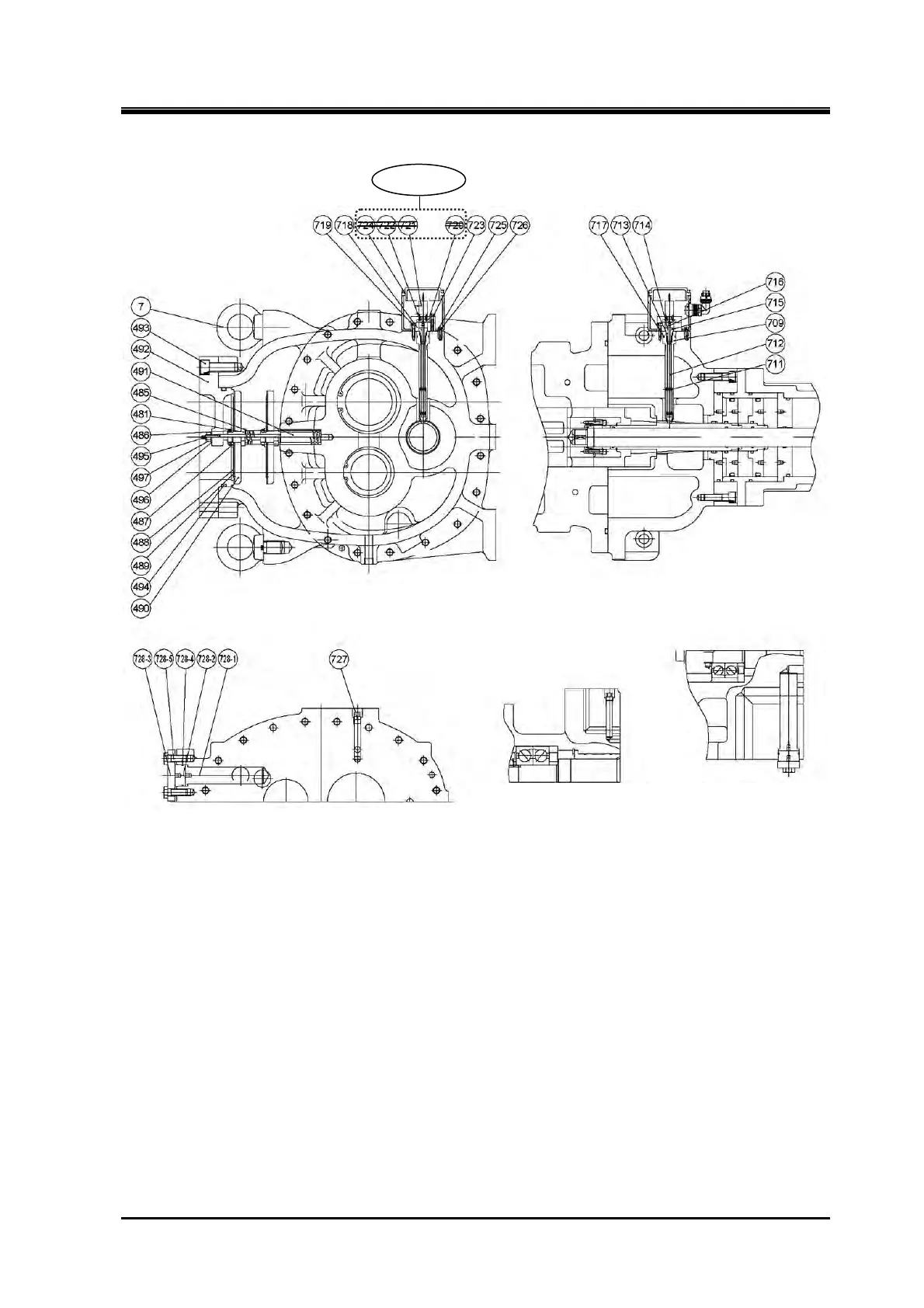

Figure 2-12 Sectional View of the 220J-Series (3/3)
[ Liquid In
j
ection Port ]
[ Economize
r
Port ]
