GT 710-8710 Swing Door System Low Energy Operator www.NabcoEntrances.com
Part #15-10683 Rev. 9-24-14

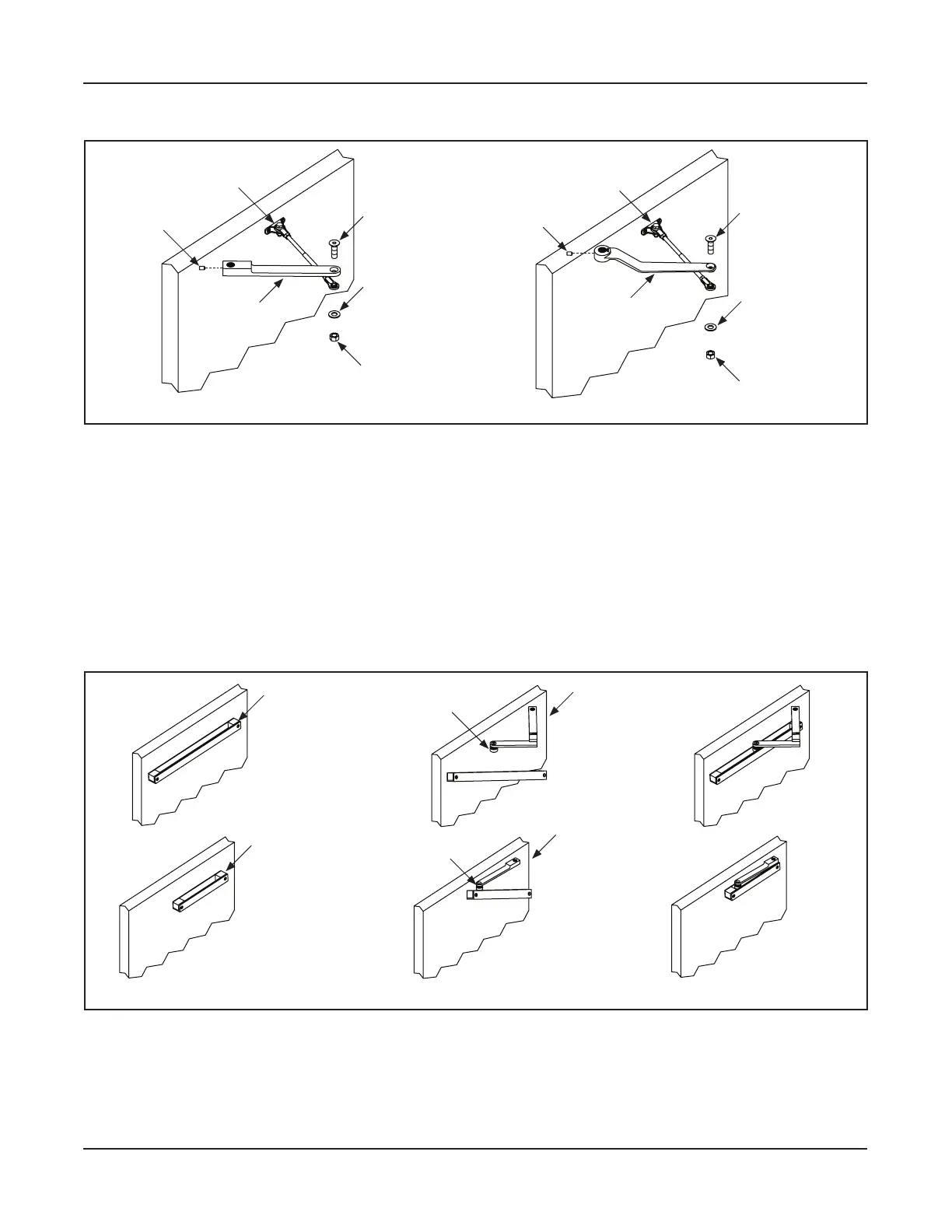

6-20 Install the Second Half of Swing Arm
DN 1104
5/16-24
Set Screw
3/8”-24 Lock Nut
Swing Arm
(Low Profi le)
Threaded Rod
3/8”-24 x 1-1/4”
Socket Screw
.405 Washer
5/16-24
Set Screw
Swing Arm
(Standard Profi le)
Threaded Rod
3/8”-24 x 1-1/4”
Socket Screw
3/8”-24 Lock Nut
.405 Washer
Figure 6-5 Connect the Swing Arm to the Threaded Rod
6.b.b: Inswing Arm
Track to the Swing door. Please see .
a. That side of the Track will hang down.
Close the Swing door to allow the Wheeled Roller (located at the end of the Swing Arm) to butt
against the Swing door.
Pull the Swing Arm to the Swing door, then raise the Track.
Secure the Track to the Swing door with (1) 1/4-20 x 2-1/4” Screw.
DN 1105
21” Track
Inswing Arm
Wheeled Roller
Wheeled Roller
Inswing Arm
“0” Reveal
12-1/4” Track
Figure 6-6 Insert the Swing Arm into the Track
