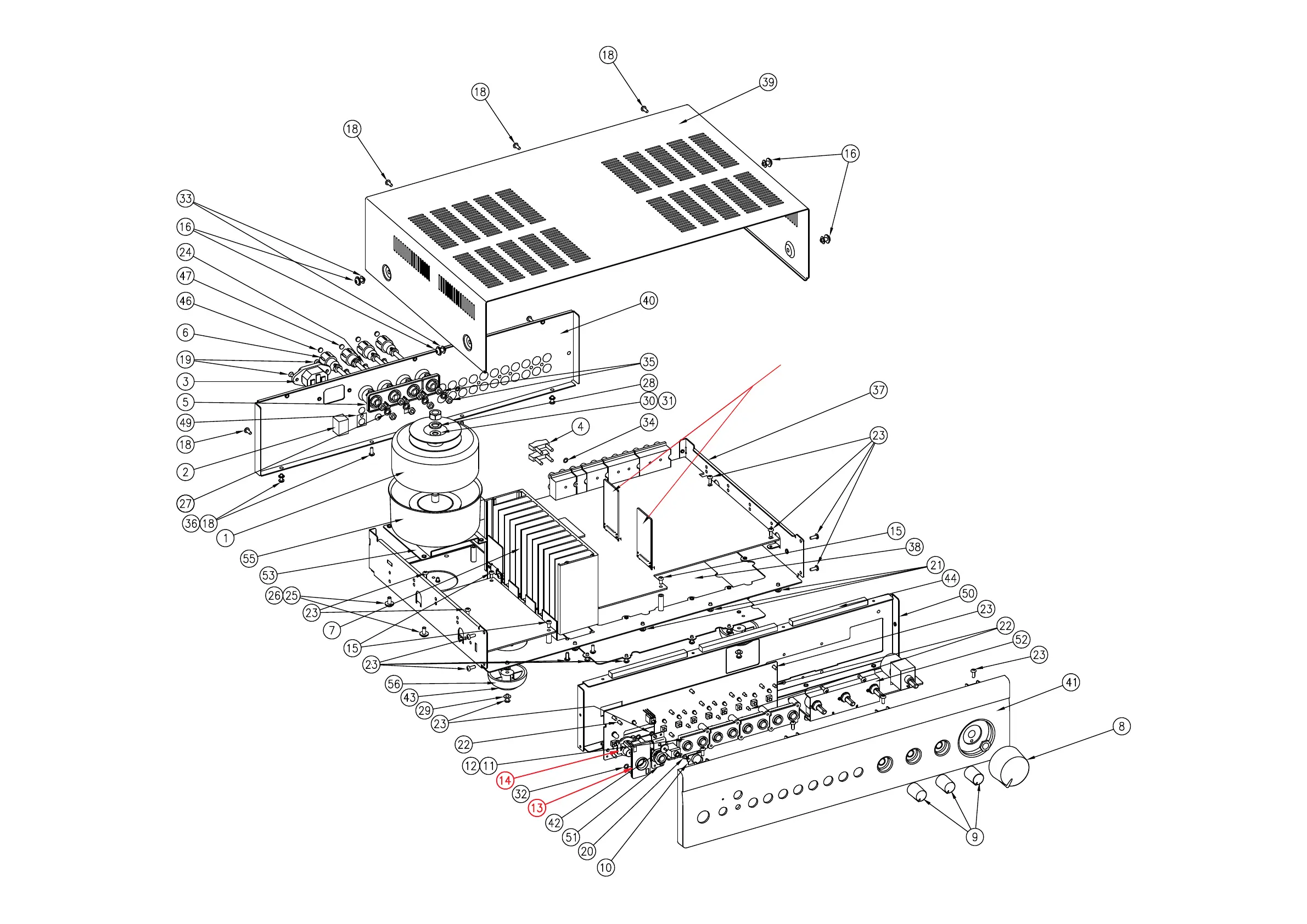

NAD C 326BEE - EXPLODED VIEW - A

35
EXPLODED VIEW - A
**Note: Terminal post assembly part number 50-927-0326-90
is made up of the parts; 5, 6, 27, 35, 46, & 47
**Note: Power button and power button bezel are sold as one assembly: 13 & 14
90SC326PREDVR-9021000
