NAD C 720BEE - Front and Rear Panel Overview; Rear Panel Description; Front Panel Description

1&2 FM&AM ANTENNA
3. SPEAKER A&B
4. SWITCHED AC OUTLET
5. AC LINE CORD
6. VACATION SWITCH ON/OFF
7. SOFT CLIPPING
8. SUBW OUT
9. MAIN IN
10. PRE-OUT
11. RECORD OUT/ZONE 2
12. TAPE IN
13. AUX INPUT
14. VIDEO INPUT
15. CD INPUT
16. DISC INPUT
17. IR INPUT/OUTPUT
18. +12V TRIGGER OUT

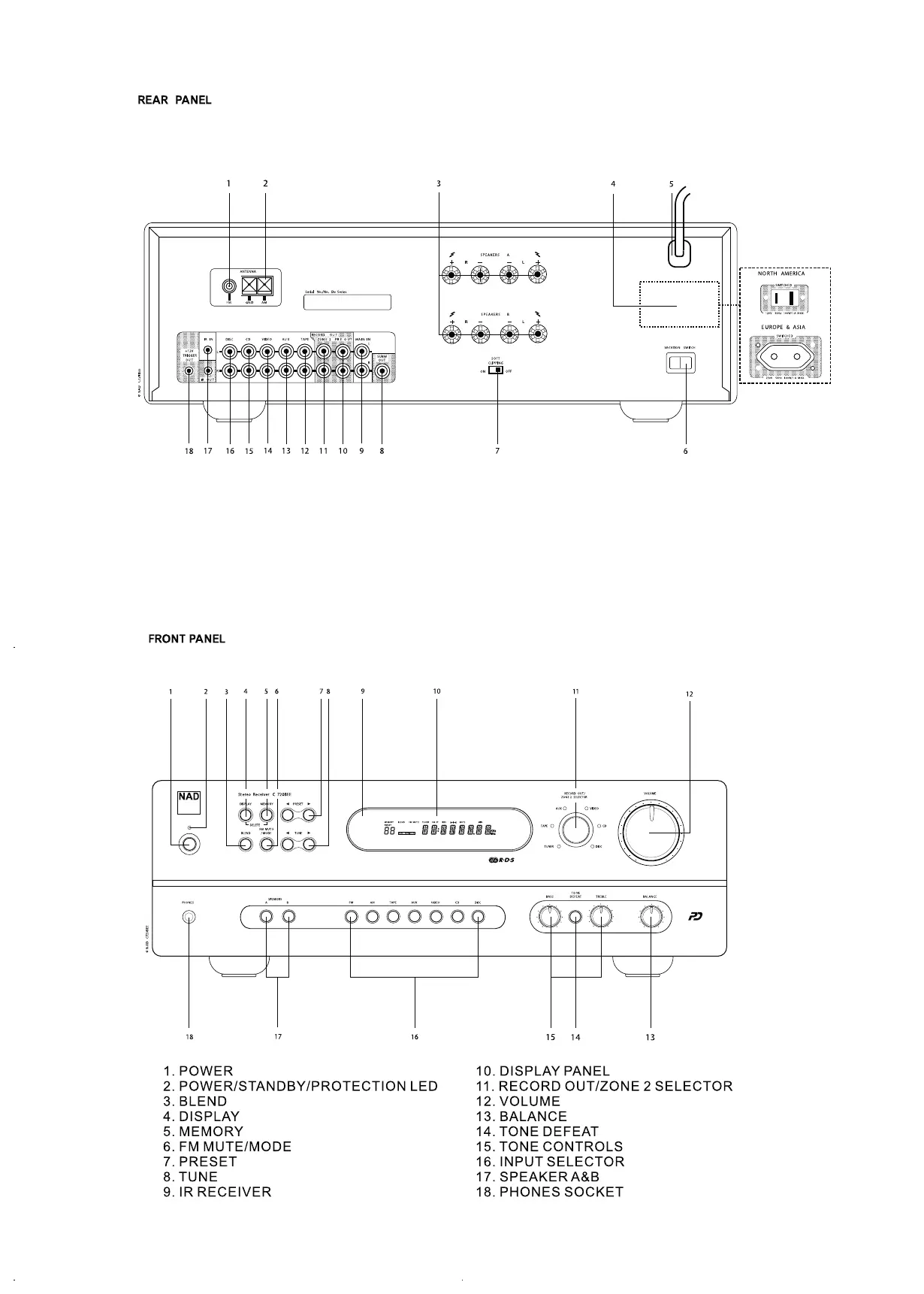

FRONT PANEL/REAR PANEL
- 4 -
