29 Accelaterm
®
Installation and Service Manual
LED DIAGNOSTICS
Charger/Isolator Board: CICP2800PCHGBD
12V 12 Volt DC Output from
board, either from Power Supply or
from Backup Battery
PWR 12 Volt DC
Into board from Power Supply.
Does not light if operating on
Backup Battery
Processor/Memory Board: CICP2800PMBD
RST (Red) Reset
Steady Blink indicates trouble.
PWR 5 Volt DC Passed to this
board from Interface Board.

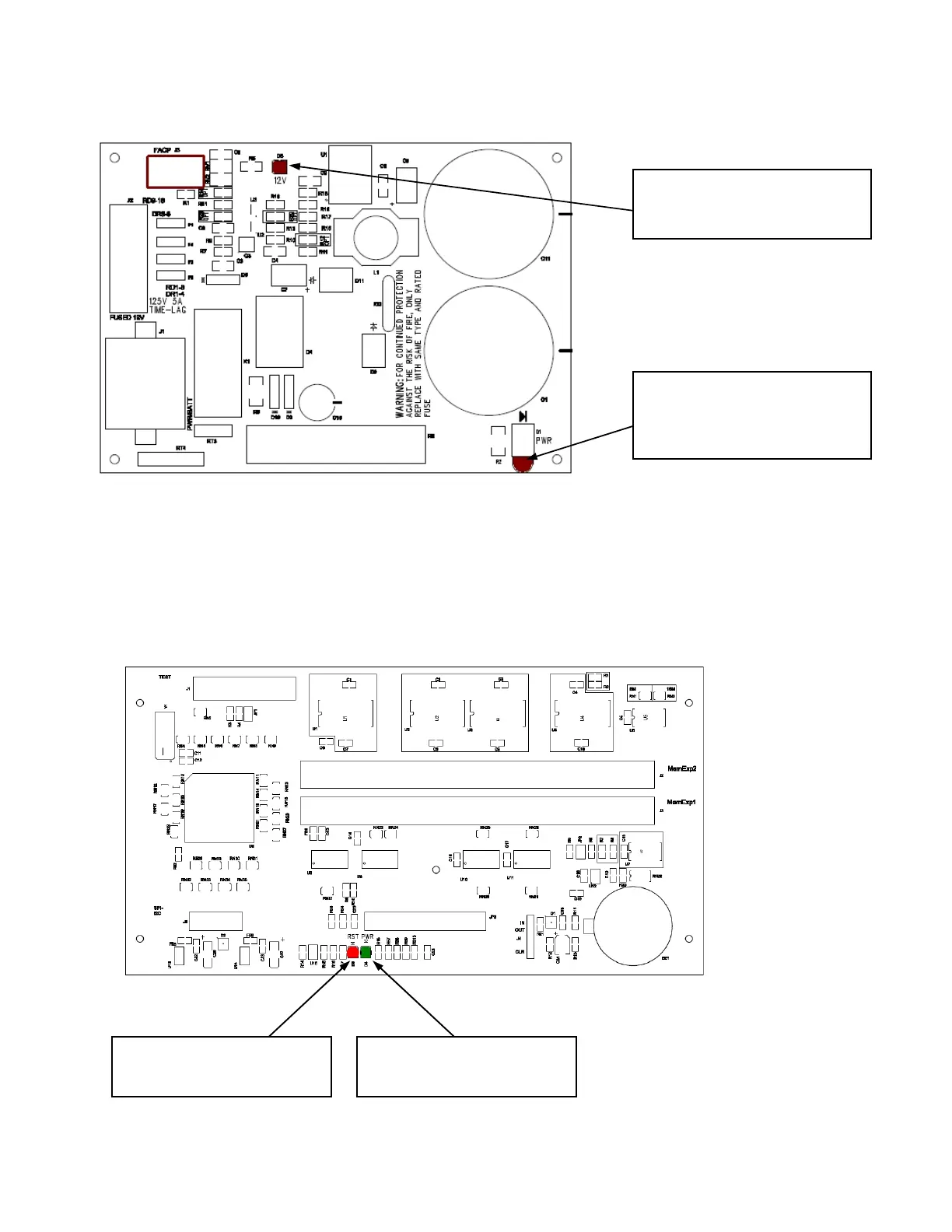

Figure 21 - LED Diagnostics: Charger/Isolator Board (CICP2800PCHGBD)
Figure 22 - LED Diagnostics: Processor/Memory Board (CICP2800PMBD)
