Napoleon LD485RB - Cart Structure Assembly

14
www.napoleongrills.com

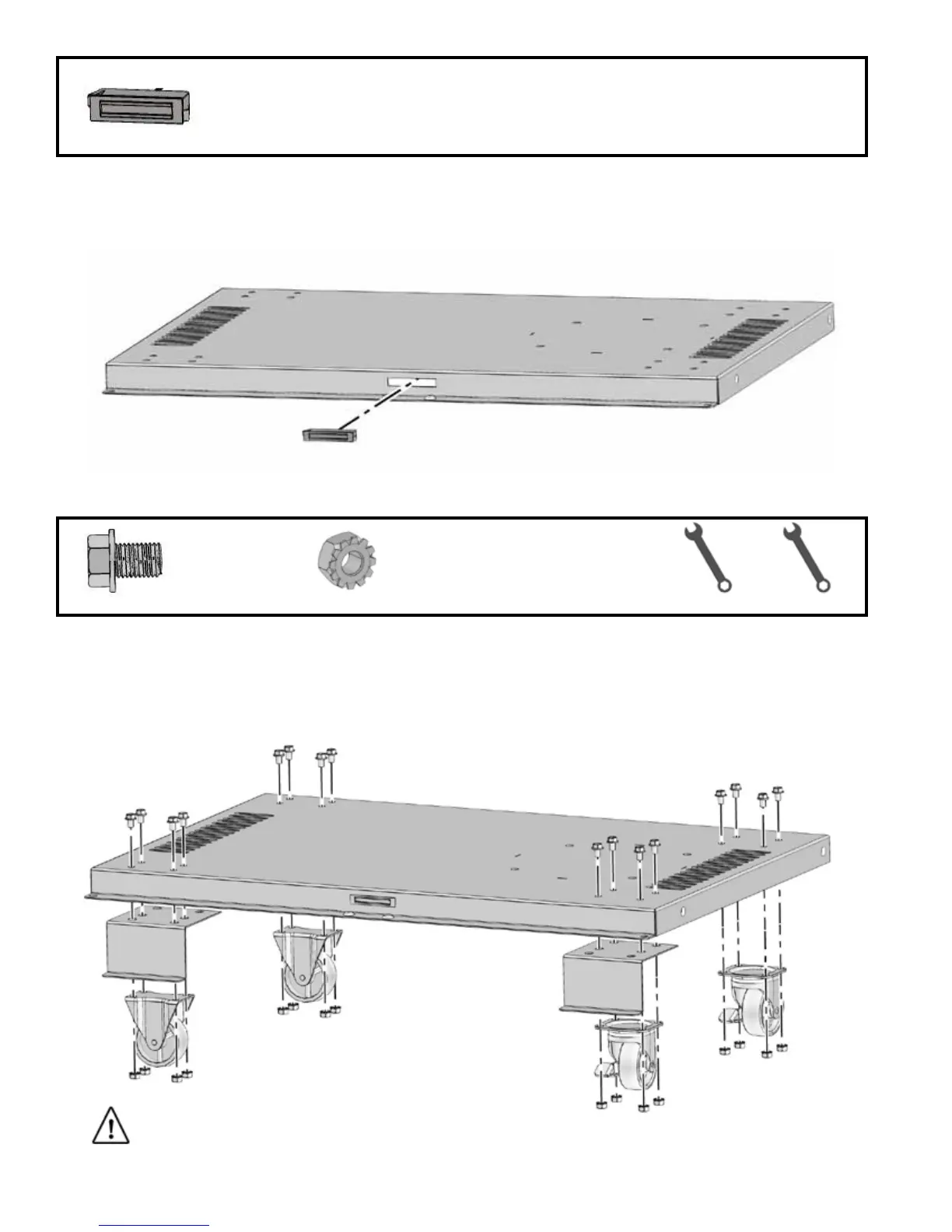

2. Caster/Bracket Installaon
Aach (4) casters, using (4) ¼ -20 x 3/8” screws and (4) ¼ -20 lock nuts for each caster. Aach brackets under front casters
as illustrated. Tighten securely.
1. Magnet Installaon
Snap magnet into slot in front of boom shelf.
1 X N430-0002
16 X N570-0073 (1/4-20 X 3/8”)
3/8”(10mm)
7/16”(11mm)
16 X N450-0027 (1/4-20)
non relvolving caster- le side
3. Propane Tank Ring Installaon
Insert propane tank ring into slots in boom of shelf as shown. Fold tabs over to secure in place.
4. Le and Right Cart Panel Installaon
Install end cart panels ensuring slots in panel are to the top, rest panel on boom shelf and line up holes. Fasten using
(4) #14 x 1/2” screws.
