Napoleon LD485RB - Heat Shield Installation

18
www.napoleongrills.com
4 x N570-0080 (#14 x 1/2”)
3/8”(10mm)
4 x N570-0080 (#14 x 1/2”)
1 X N430-0002

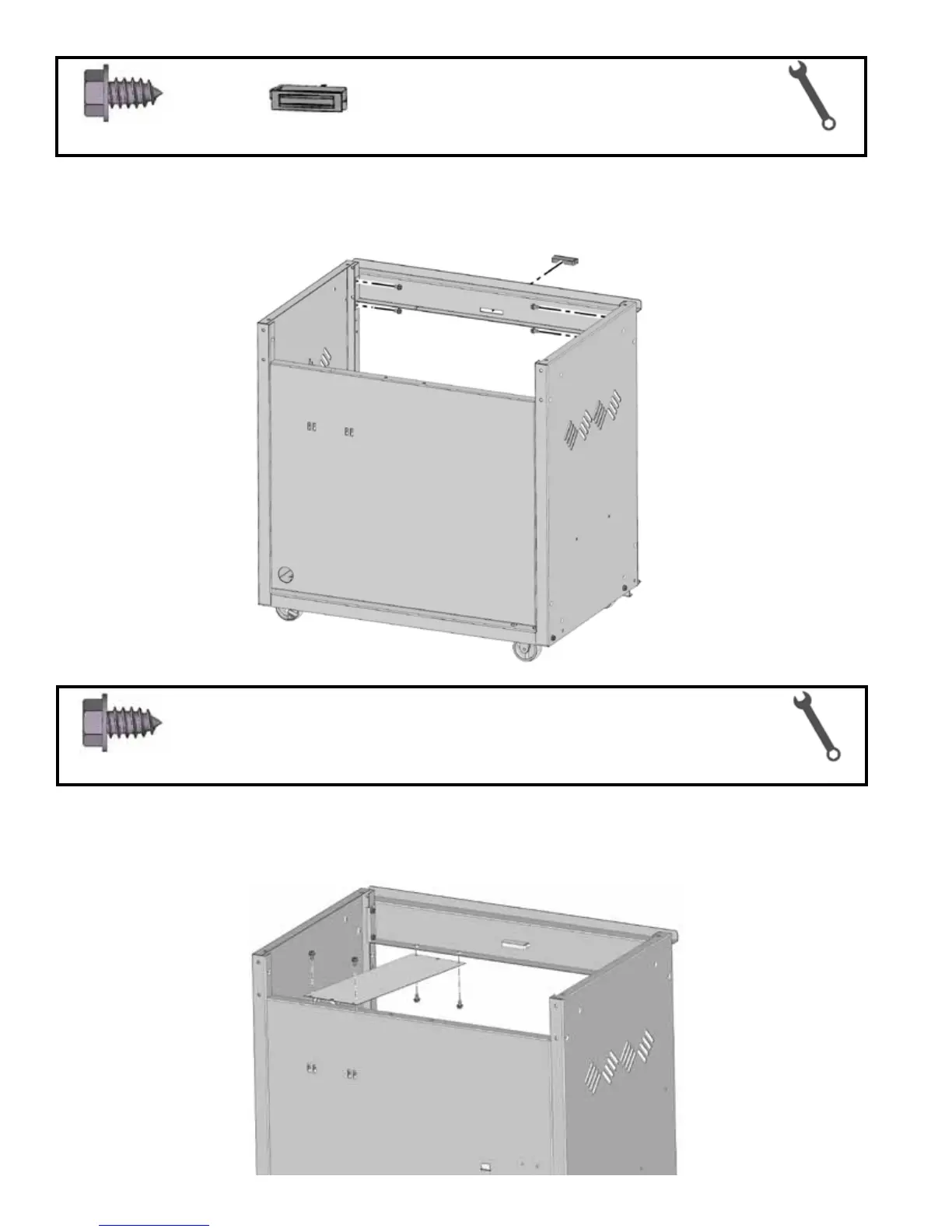

7. Front Cabinet Support Installaon
Fasten top rail assembly to the front of side panels using (4) #14 x 1/2” screws. For ease of installaon start all screws
be fore ghtening completely. Snap magnet into place as shown.
3/8”(10mm)
8. Heat Shield Installaon
Aach heat shield using (4) #14 x 1/2» screws. Aach one end under lip of back panel and other end to underside of front
cabinet support.
