Napoleon LD485RB - Door Assembly

23
www.napoleongrills.com
4 x N570-0099 (#14 x 3/4”)
3/8”(10mm)
4 x N340-0007 (tool hook)

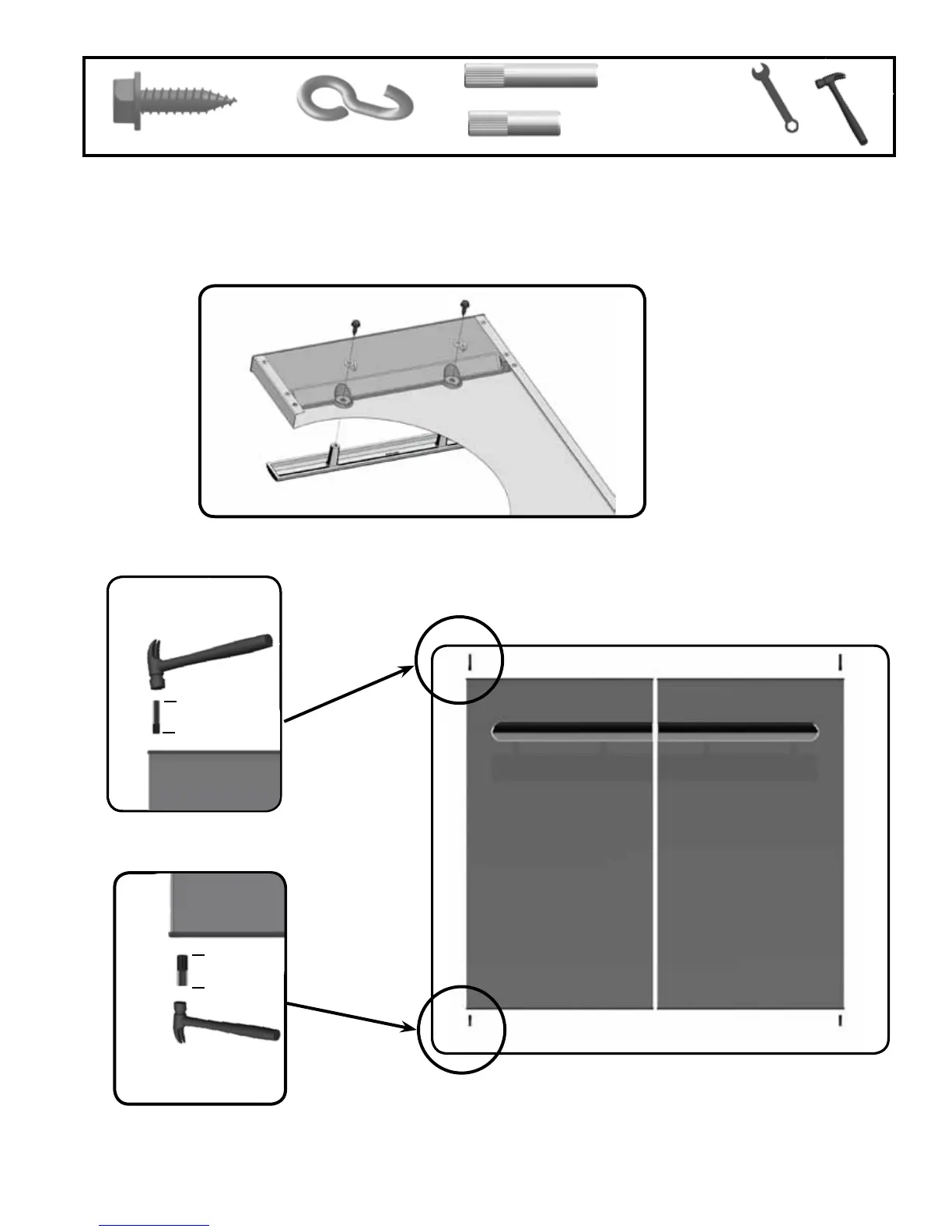

13. Door Assembly
Install the door handle onto the front of the door and the tool hooks onto the back of the door using (2) #14 x 3/4” screws
per door. Press the door pivot pins into the holes in the top and boom of each door as illustrated gently tapping with a
hammer.
1
1/4”
TOP
7/8
”
BOTTOM
2 x N485-0016 (1 1/4” top pivot pin)
2 x N485-0017 (7/8” boom pivot pin)
