24
www.napoleongrills.com
2 x N160-0022 (pivot pin clip)
2 x N105-0011 (door bushing)
Bushing
1
2

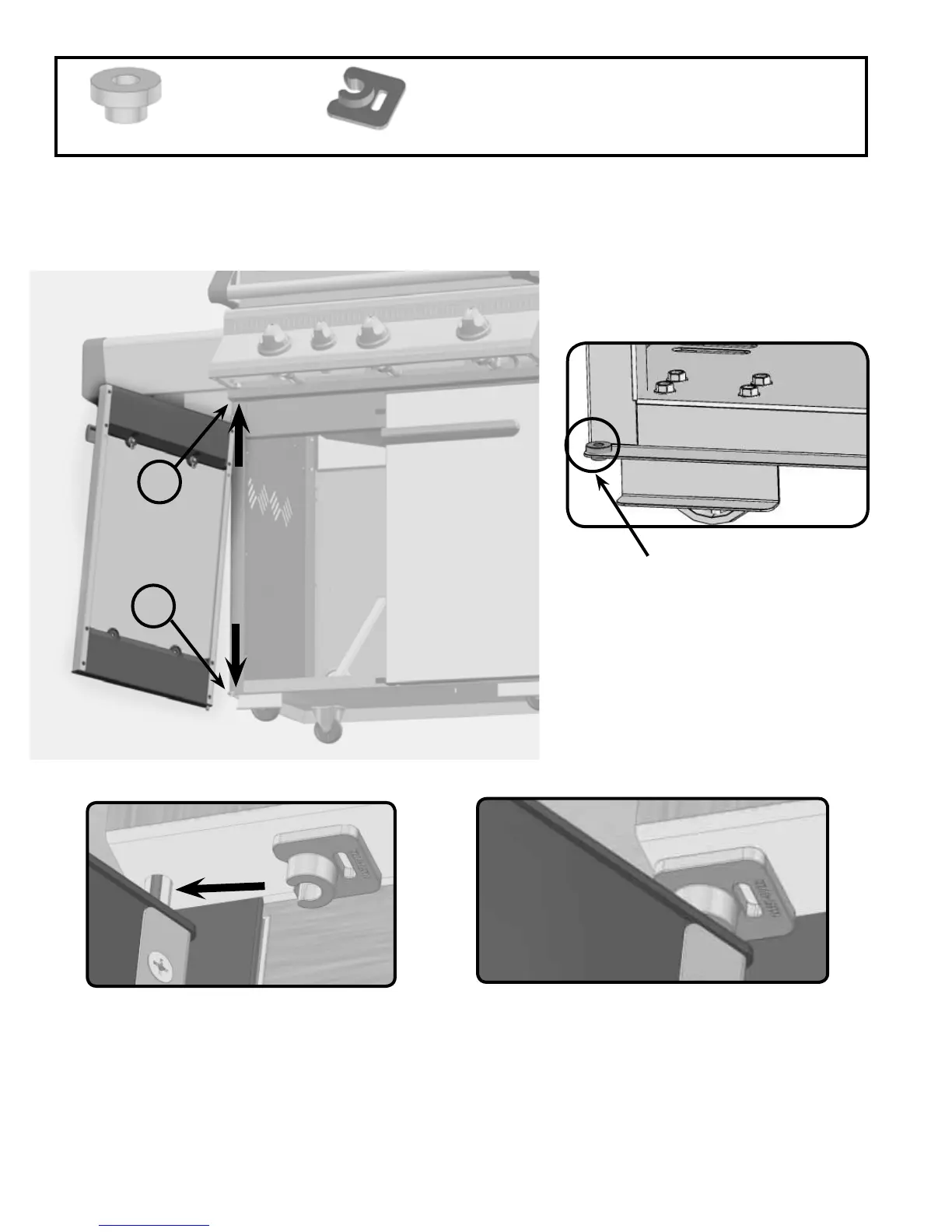

14. Cabinet Door Installaon
First direct the pivot pin into the hole in the underside of the front cabinet support and then lower the door into the bushing
in
the boom shelf. Once secure, snap the top pivot pin clip over the top pivot pin as illustrated.
