Napoleon LD485RB - Side Shelf Installation

22
www.napoleongrills.com
4 x N570-0082 (1/4-20 X 5/8”)
3/8”(10mm)
4 x N735-0001 (insulated washer)

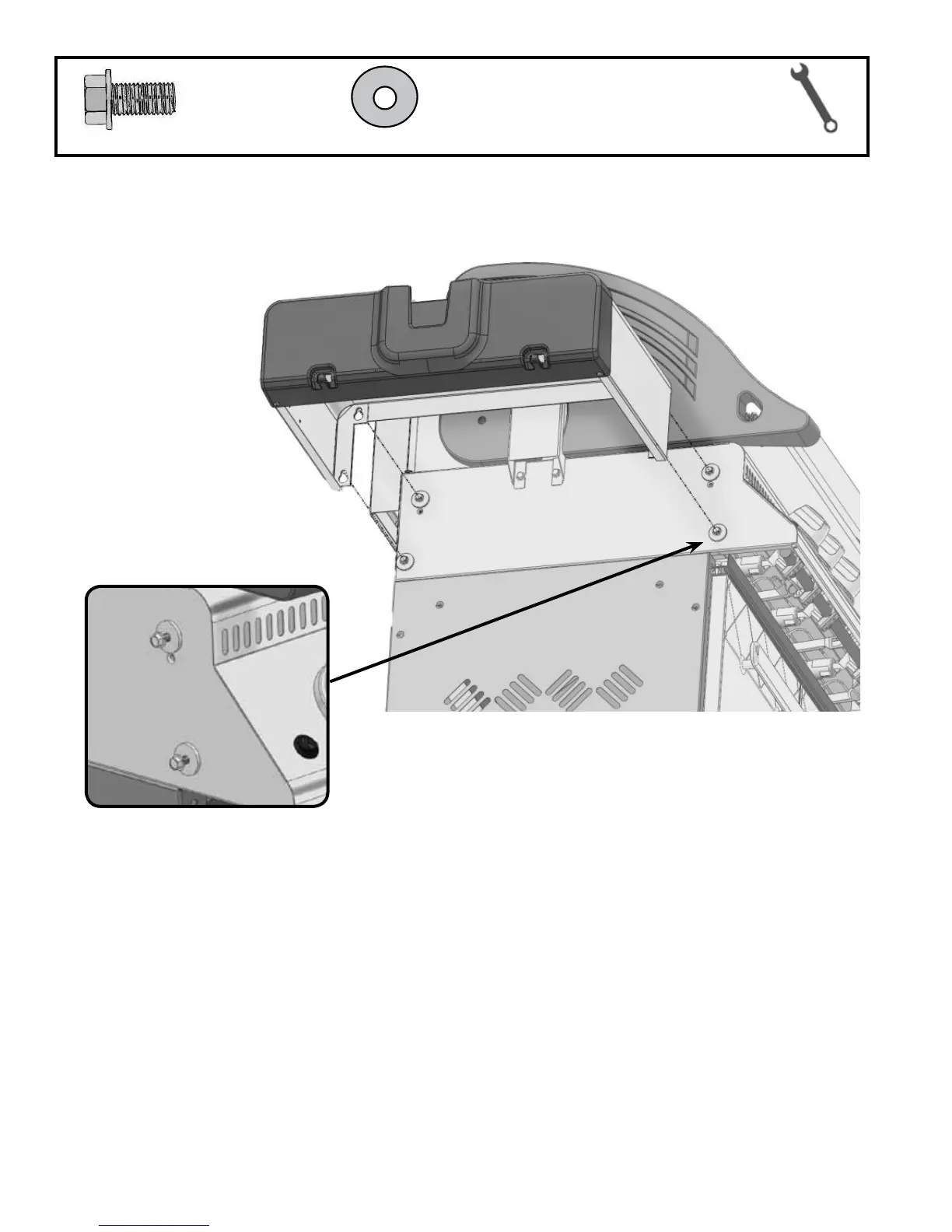

12. Side Shelf Installaon
Insert (4) 1/4 - 20 x 5/8” screws through the washers into the threaded holes in the side of the base; do not ghten all the
way. Slide the assembled side shelf over the screw heads and nish ghtening.
