6 x N570-0080 (#14 x 1/2”)
3/8”(10mm)

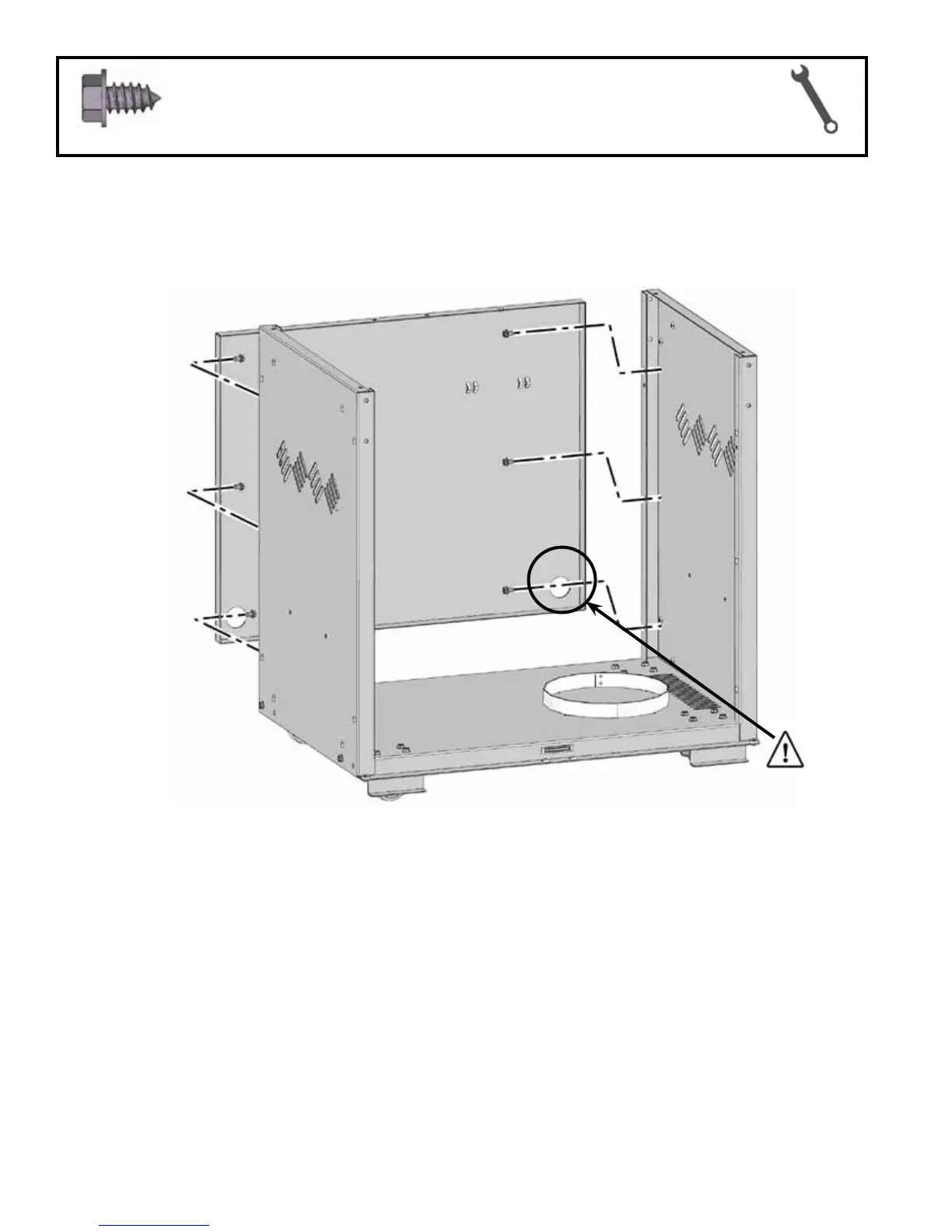

5. Rear Cart Panel Installaon
Fit rear cart panel between the two end panels; ensure large hole in panel is to the boom right corner as illustrated. Fasten
using (6) #14 x 1/2” screws, three on each side.
6. Tank Inhibitor Bracket / Propane Tank Mount Installaon
Insert tank inhibitor bracket into slot in rear panel as illustrated. Fasten to boom panel using (1) #14 x 1/2” screw. Clip top
propane tank mount into slots in back panel. Insert one end at a me, gently bending wire. (When not in use tank mount
will lay at against back panel).
To Next Page
