Appendix B Hardware Configuration
© National Instruments Corporation B-7 NI 8352/8353 User Manual
Other Connectors
Figure B-10 shows the locations of other connectors on the NI 8352/8353.

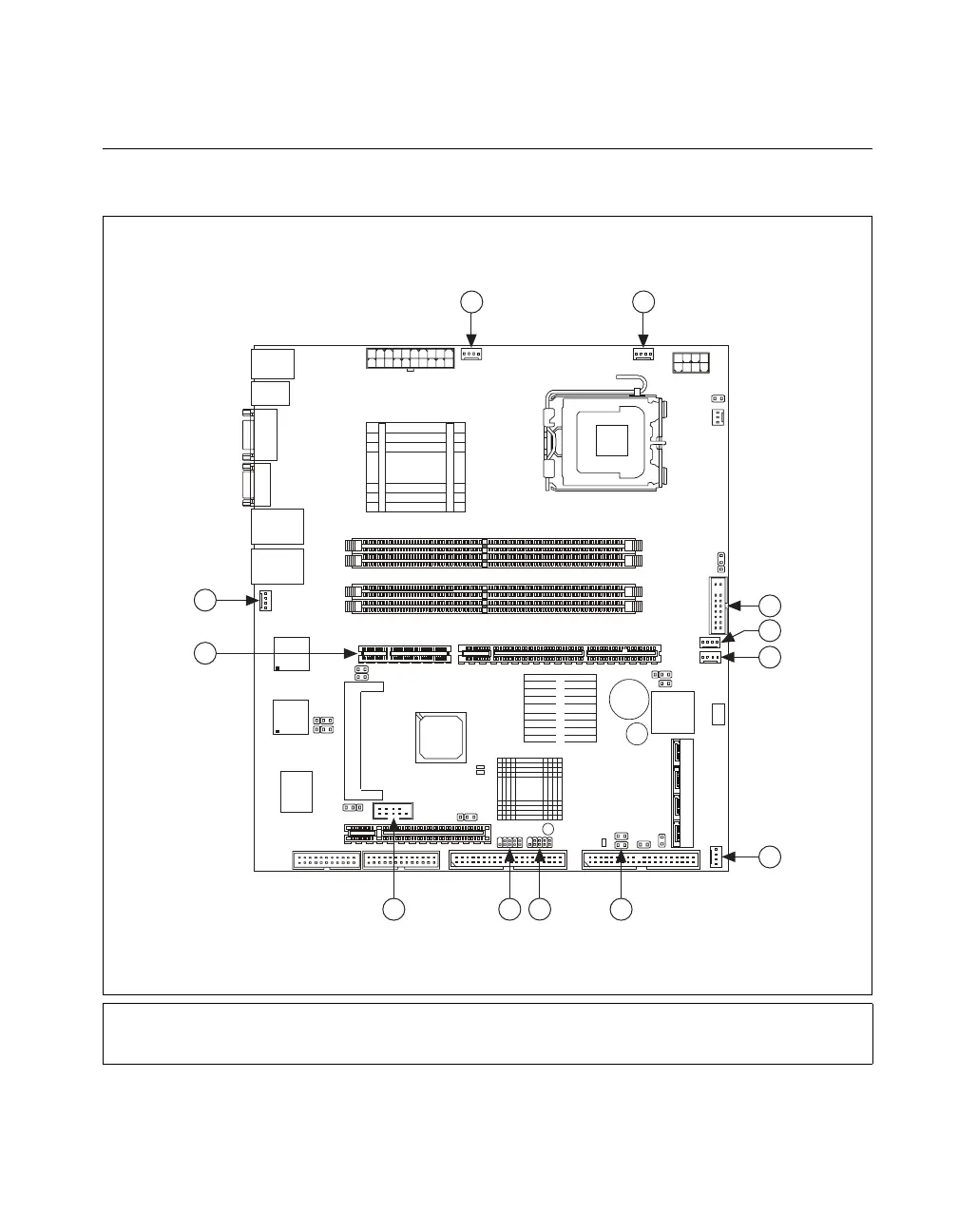

Figure B-10. NI 8352/8353 Other Connector Locations
1 Fan6
2 Fan1
3FP CTRL JF1
4Fan2
5Fan3
6Fan4
7JL1
8 USB5/6 J46
9 USB3/4 J45
10 COM2
11 SXB-E1 PCI-Ex8 J42
12 Fan5
1
2
3
4
5
7
6
8
910
11
12
