Appendix B Hardware Configuration
© National Instruments Corporation B-21 NI 8352/8353 User Manual
DVD-ROM Connector: IDE1
The mainboard has a 32-bit Enhanced PCI IDE and Ultra DMA 66/100
controller that provides PIO mode 0~4, Bus Master, and Ultra DMA 66/100
functions. You can connect a DVD-ROM or other IDE devices.

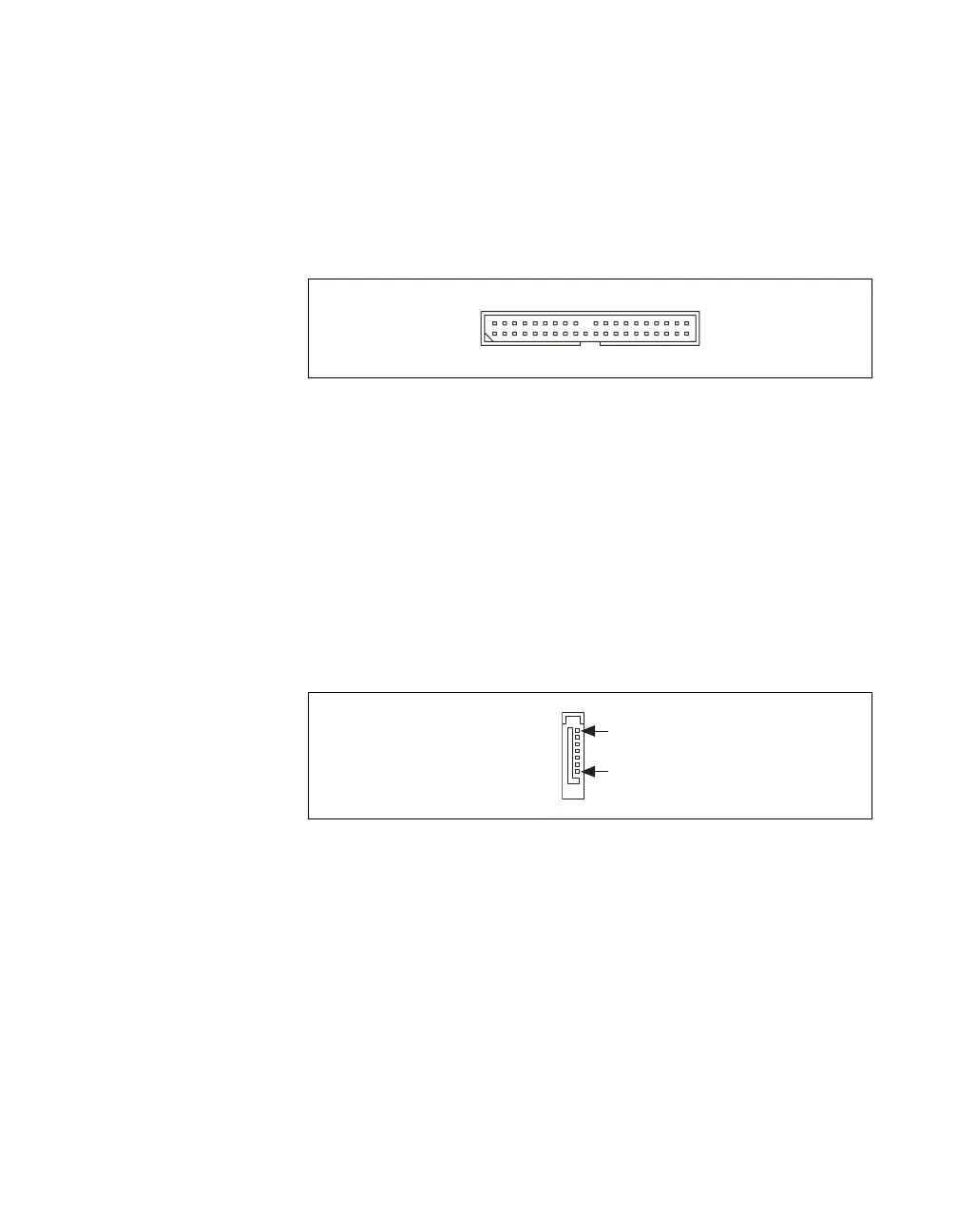

Figure B-23 shows the IDE1 connector.
Figure B-23. IDE1 Connector
SATA Connectors: SATA0–SATA3
The ICH7R south bridge supports four Serial ATA connectors
(SATA0–SATA3).
SATA connectors are high-speed Serial ATA interface ports. Each supports
Serial ATA data rates of 300 MB/s. All connectors are fully compliant with
Serial ATA 2.0 specifications. Each Serial ATA connector can connect to
one hard disk.
Figure B-24 shows the SATA0–SATA3 connector.
Figure B-24. SATA0–SATA3 Connector
