1-16 | ni.com
Chapter 1 Getting Started with the cDAQ Chassis

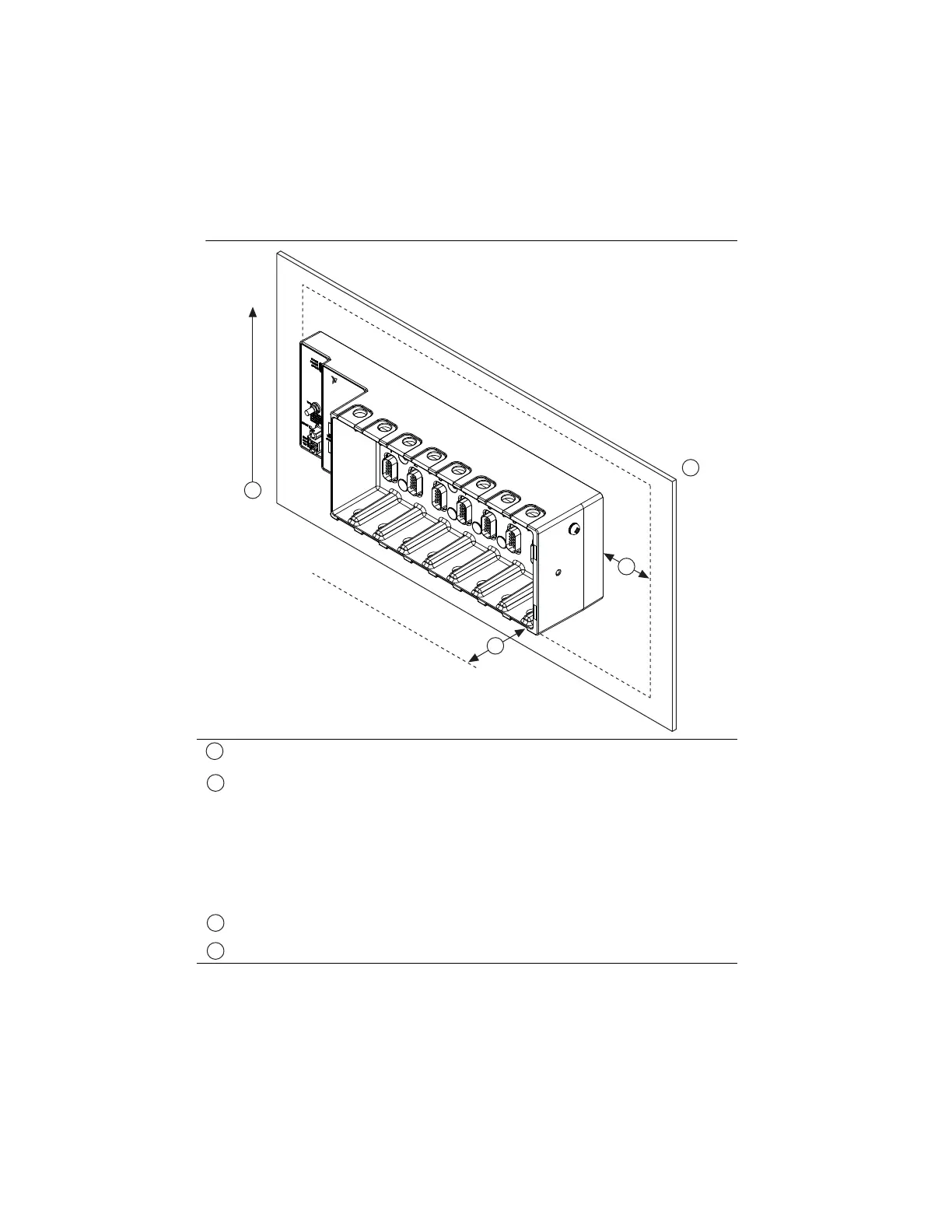

Figure 1-11. cDAQ Chassis Reference Mounting Configuration (cDAQ-9189 Shown)
Horizontal mounting orientation.
Mounting substrate options:
• Mount the cDAQ chassis directly to a metallic surface that is at least 1.6 mm
(0.062 in.) thick and extends a minimum of 101.6 mm (4 in.) beyond all edges of the
device.
• Use the NI 9904 or NI 9905 Panel Mounting Kit to mount the cDAQ chassis to a
metallic surface that is at least 1.6 mm (0.062 in.) thick and extends a minimum of
101.6 mm (4 in.) beyond all edges of the device.
Observe the cooling dimensions in the Mounting Requirements section.
Allow space for cabling clearance according to the Mounting Requirements section.
1
Up
4
3
2
NI cDAQ-9189
NI CompactD
NATIONAL
INSTRUMENTS
1
