Chapter 1 Getting Started with the cDAQ Chassis

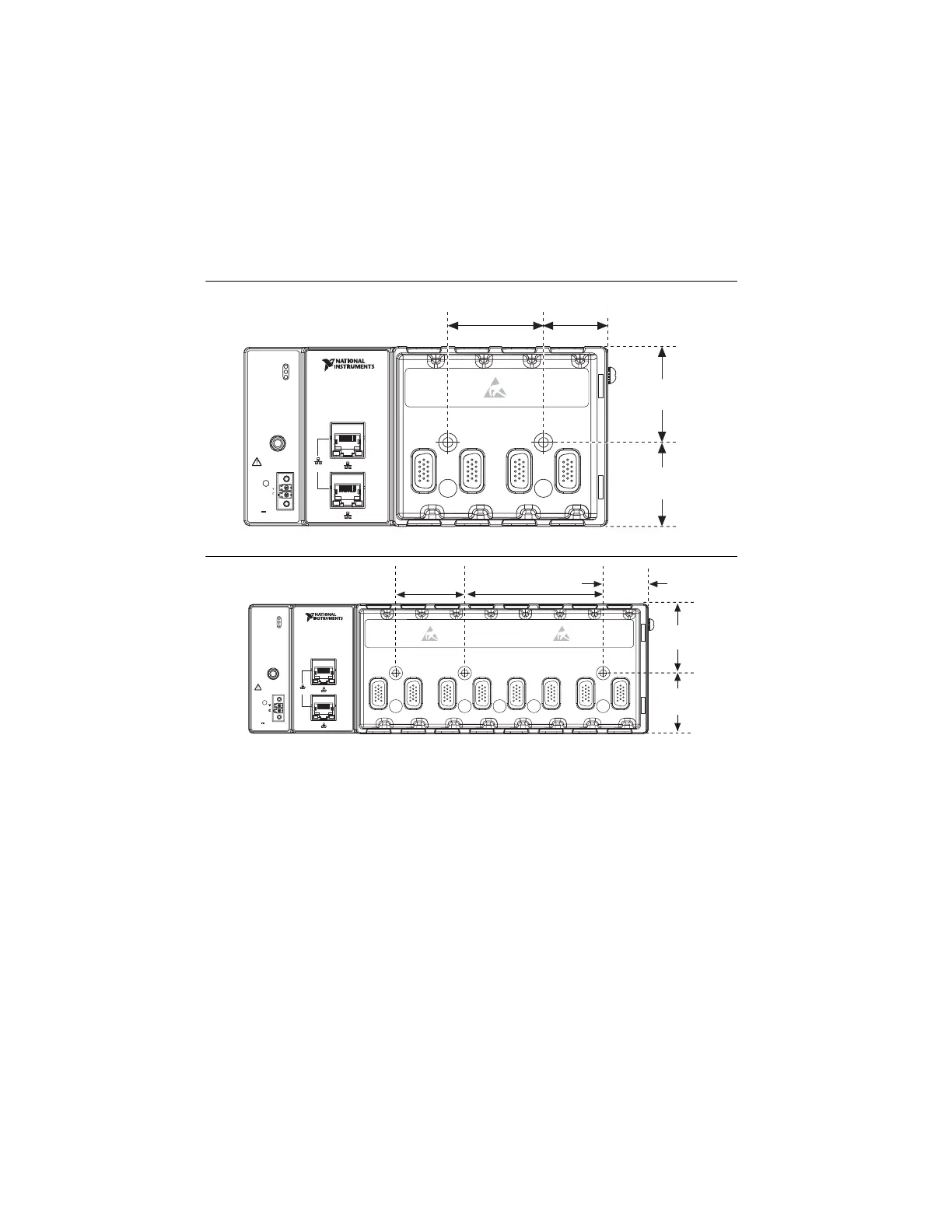

The following figures show the surface mounting dimensions for the cDAQ-9185 and
cDAQ-9189.
Figure 1-18. cDAQ-9185 Surface Mounting Dimensions
Figure 1-19. cDAQ-9189 Surface Mounting Dimensions
Mounting the cDAQ Chassis on a Panel
You can use the NI 9904 panel mounting kit to mount the cDAQ-9185 on a panel. You can use
the NI 9905 panel mounting kit to mount the cDAQ-9189 on a panel.
What to use:
• cDAQ chassis
• Screwdriver, Phillips #2
•
(cDAQ-9185) NI 9904 panel mounting kit, 779097-01
– Panel mounting plate
– M4x25 screws (x2)
NI CompactDAQ
NI cDAQ-9185
POWER
STATUS
PFI 0
RESET
DO NOT SEPARATE
CONNECTORS
WHEN ENERGIZED
IN HAZARDOUS
LOCATIONS
21
ACTIVE
43
INPUT
9-30 V
16 W MAX
47.24mm
(1.8600 in.)
46.96 mm
(1.8488 in.)
41.14 mm
(1.6197 in.)
30.58 mm
(1.2040 in.)
LINK/
ACT
10/100/
1000
1
2
LINK/
ACT
10/100/
1000
SYNC
NI CompactDAQ
NI cDAQ-9189
POWER
STATUS
PFI 0
RESET
DO NOT SEPARATE
CONNECTORS
WHEN ENERGIZED
IN HAZARDOUS
LOCATIONS
21
ACTIVE
876543
INPUT
9-30 V
16 W MAX
LINK/
ACT
10/100/
1000
1
2
LINK/
ACT
10/100/
1000
SYNC
47.2 mm
(1.86 in.)
30.8 mm
(1.21 in.)
47.0 mm
(1.85 in.)
41.1 mm
(1.62 in.)
94.5 mm
(3.72 in.)
