National Instruments cDAQ-9185 User Manual

1-24 | ni.com
Chapter 1 Getting Started with the cDAQ Chassis

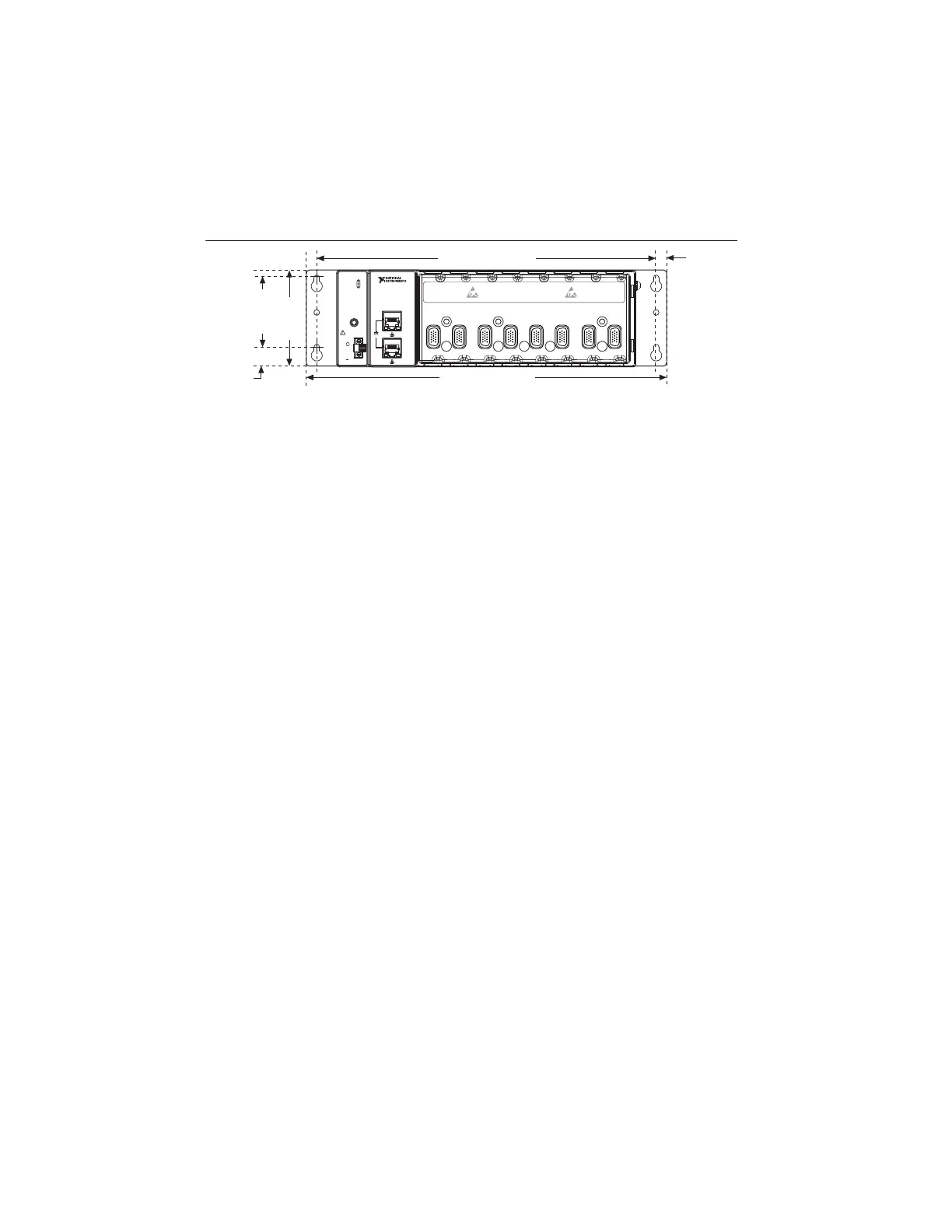

Figure 1-22. cDAQ-9189 Panel Mounting Dimensions
Alternate Mounting Configurations
The maximum operating temperature of 70 °C may be reduced for any mounting configuration
other than the reference mounting configuration. A 10 °C (18 °F) reduction in maximum
operating temperature is sufficient for most alternate mounting configurations. Follow the
mounting requirements for all mounting configurations.
The published accuracy specifications, although not guaranteed for alternate mounting
configurations, may be met depending on the system power and the thermal performance of the
alternate mounting configuration.
Contact NI for further details regarding the impact of common alternate mounting
configurations on maximum operating temperature and module accuracy.
Mounting the cDAQ Chassis on a DIN Rail
You can use the NI DIN rail mounting kit to mount the cDAQ chassis on a standard 35-mm DIN
rail.
What to use:
• cDAQ chassis
• Screwdriver, Phillips #2
•
(cDAQ-9185) NI 9912 DIN rail mounting kit, 779019-01
– DIN rail clip
– M4x25 screws (x2)
•
(cDAQ-9189) NI 9915 DIN rail mounting kit, 779018-01
– DIN rail clip
– M4x25 screws (x2)
311 mm (12.25 in.)
330 mm (13.00 in.)
17.4 mm
(0.69 in.)
9.5 mm
(0.38 in.)
88 mm
(3.5 in.)
63.5 mm
(2.5 in.)
LINK/
LINK/
ACT
ACT
10/100/
10/100/
1000
1000
1
2
LINK/
LINK/
ACT
ACT
10/100/
10/100/
1000
1000
NI CompactDAQ
NI cDAQ-9189
POWER
STATUS
ACTIVE
PFI 0
RESET
INPUT
DO NOT SEPARATE
CONNECTORS
WHEN ENERGIZED
IN HAZARDOUS
LOCATIONS
9-30 V
16 W MAX
SYNC
V
C
C
V
123456 78
