Complete the following steps to mount the cDAQ chassis on a desktop.

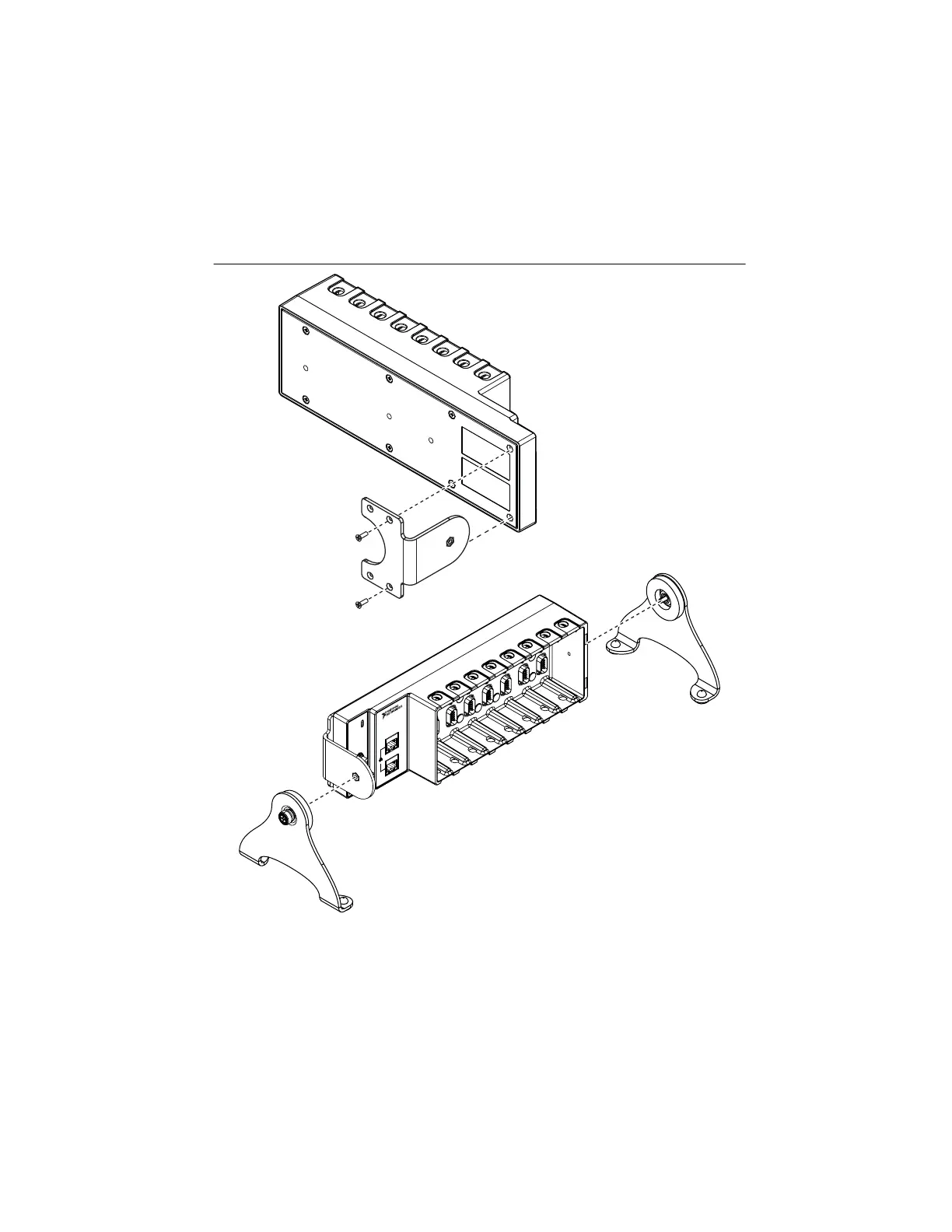

Figure 1-25. Attaching the Desktop Mounting Kit (cDAQ-9189 Shown)
1. Use a #1 Phillips screwdriver to remove the two screws from the back of the chassis on the
front-panel side.
2. Use the screwdriver and the two M3x20 screws to attach the adapter bracket to the chassis.
3. Align one of the end brackets with the mounting hole at one of the ends of the chassis.
