Importer Plus Technical Instruction Manual Operating the Importer Plus
Issue 0.02 2010-03-29 Page 8-9
WebAdmin Client
The importer WebAdmin client is an application used to perform administration functions - such as
service provider registration, service definition and configuration management - on the Importer
Plus.
Figure 8.8 shows the
SignIn screen for the WebAdmin client. The Importer Plus is shipped with a
default User ID (“admin”) and a Password (“admin”). You can change the password from within the
WebAdmin client.

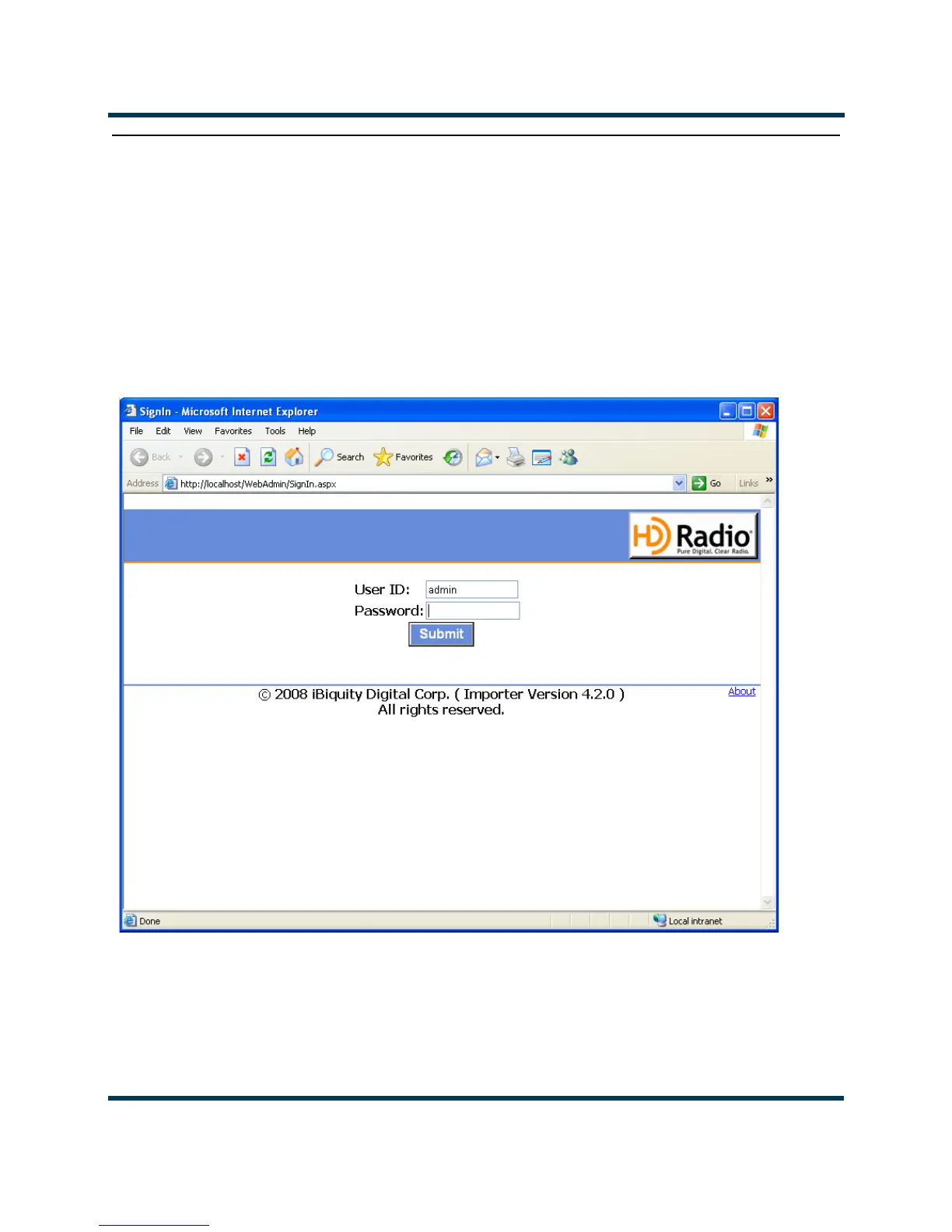

Figure 8.8: WebAdmin SignIn screen
Once you enter the WebAdmin User ID and Password, the page shown in Figure 8.9 will appear.
There are five tabs at the top, each of which opens a different WebAdmin page.
