Nautilus T624 Service Manual

158

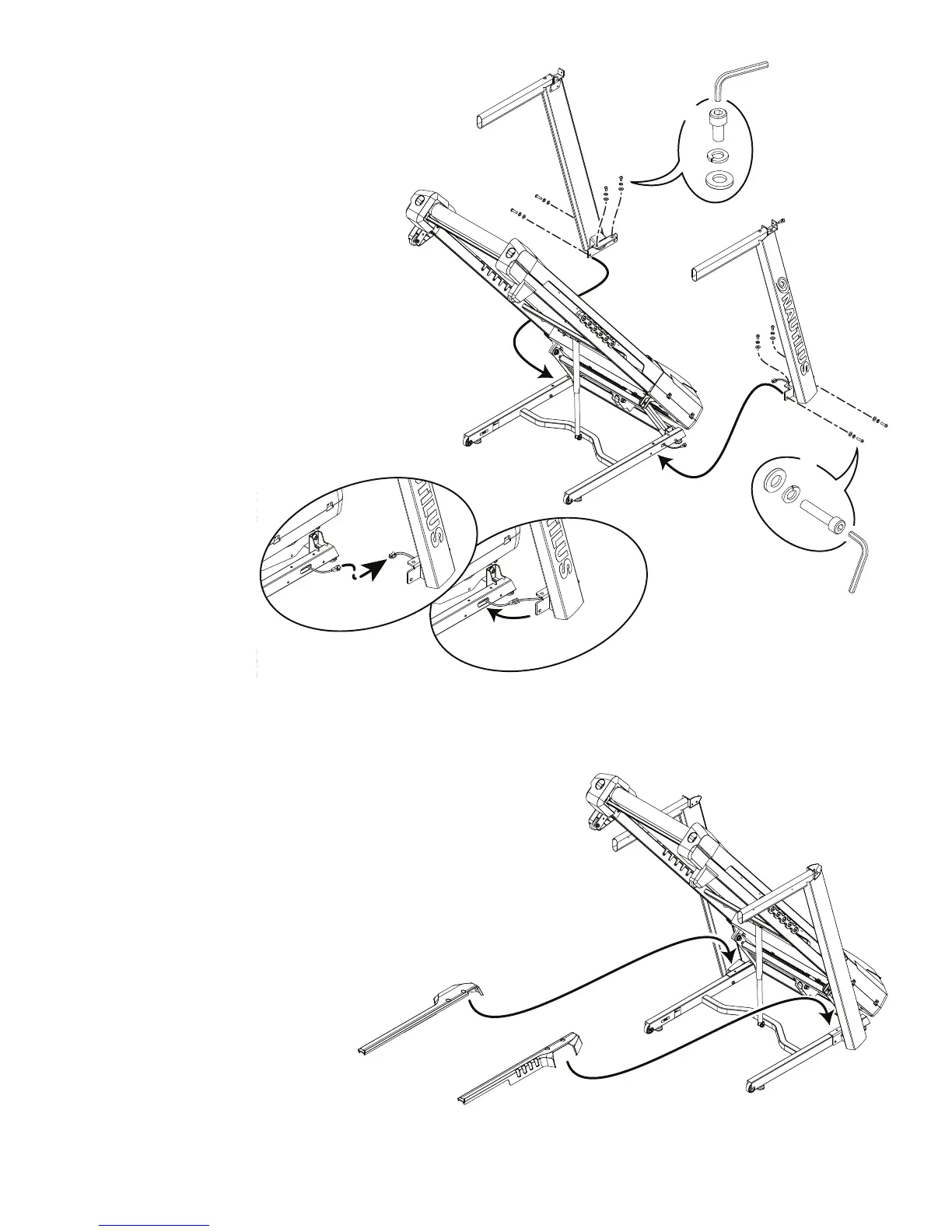

24. Connect the Input/Output (I/O) Cables and attach the Up-
rights to the Frame Assembly
Note: this step may take two people to safely hold the Right
Upright while the Cables are connected. Do not crimp the
Cables. Do not fully tighten the Hardware until the Console and
Handlebar Assembly has been attached.
X4
X4
25.PlacetheBaseShroudsbackontotheBaseAssembly.

Nautilus T624 Specifications

General

Quantity per pack	1 pc(s)
Foldable	Yes
Bluetooth	No
Incline range	0 - 12 %
Maximum speed	19.3 km/h
Minimum speed	0 km/h
Product color	Black, Grey
Number of programs	22
Maximum user weight	136 kg
Backlight color	Blue

Weight and Dimensions

Width	- mm
Weight	- g
Running area (W x L)	20 x 55 mm
Running belt thickness	1.5 mm
Running deck thickness	19 mm
