Nautilus U628 - Assembly Instructions - Part 5; Seat & Pedal Installation

13

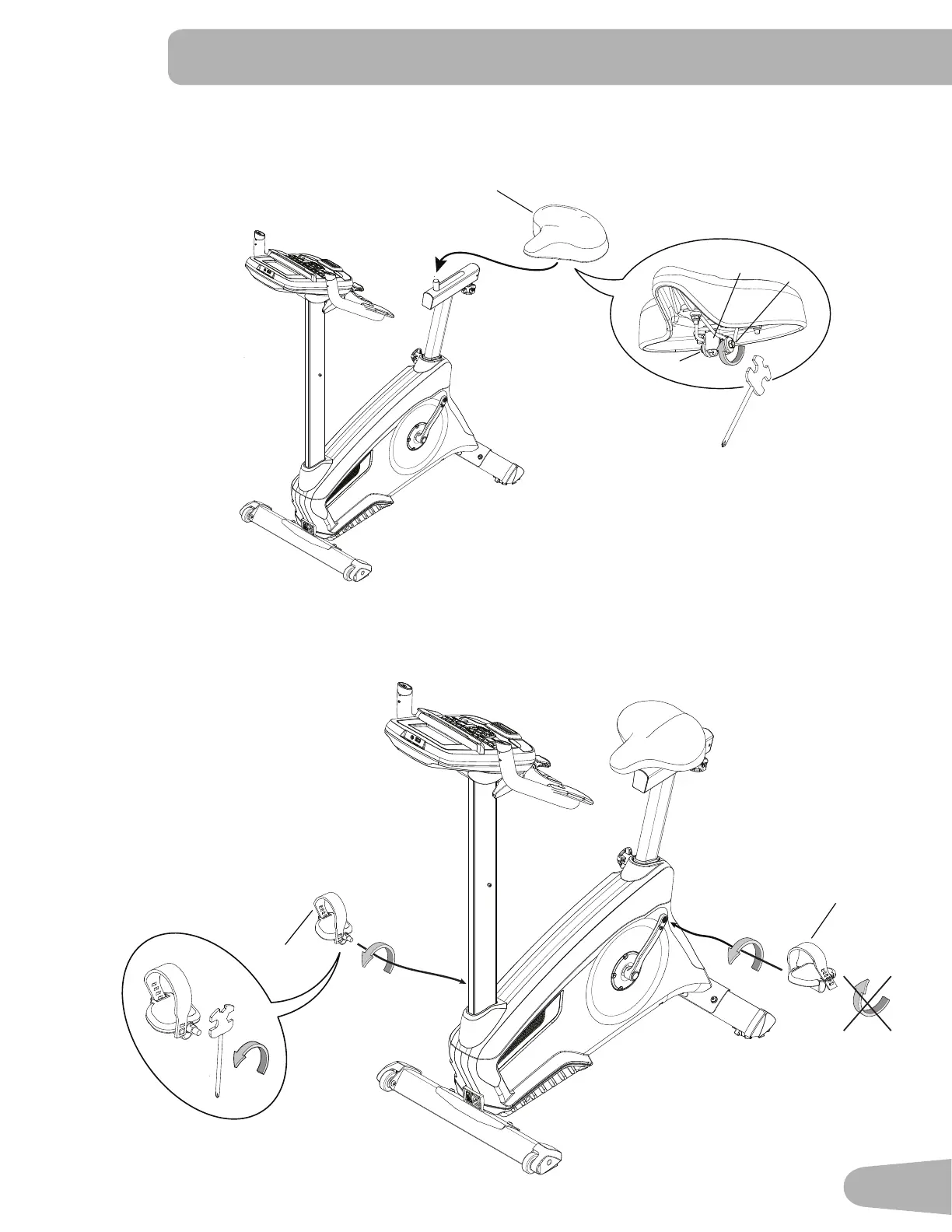

7. Attach Seat to Seat Post
NOTICE: Be sure the Seat is straight. Tighten both nuts (11b) on the Seat bracket (11a) to hold the Seat in position.
11
11a
11b
11b
8. Install Pedals
Note: The Left Pedal is reverse-threaded. Be sure to attach Pedals on the proper side of the Bike. Orienta-
tion is based from a seated position on the bike. The Left Pedal has an “L´, the Right Pedal an “R´.
13 (R)
12 (L)
